PCV Hose: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not remove except when the PCV hose is broken.

Remove the clip (A) from the air intake boot.
Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.
Loosen the clamp (C) which secures the throttle body to the air intake boot.

Fig 1: Identifying Air Intake Boot Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and place the air intake boot aside so that it does not interfere with the work.

Fig 2: Removing Air Intake Boot From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the PCV hose A from the intake manifold assembly and the PCV valve, and then remove the PCV hose A.

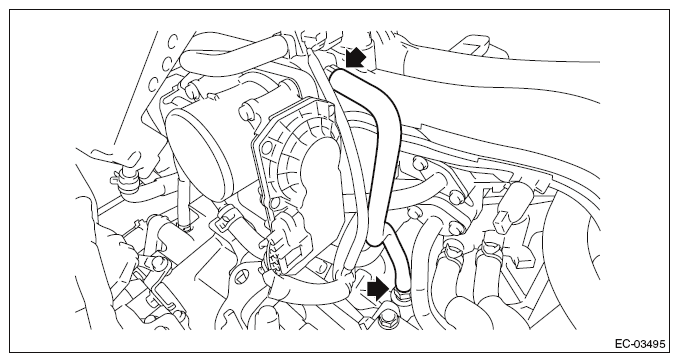

Fig 3: Locating PCV Hose A From Intake Manifold Assembly And PCV Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>REMOVAL .
Remove the PCV hose B from the PCV connector.

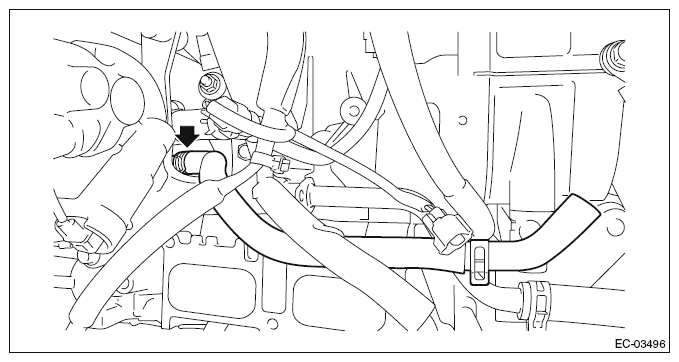

Fig 4: Locating PCV Hose B From PCV Connector

Courtesy of SUBARU OF AMERICA, INC.
