Check Switching Valve

WARNING: This page is about a different variant/trim than selected.

Check the resistance between switching valve terminals.

Fig 1: Checking Resistance Between Switching Valve Terminals

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Standard
1 and 5	27⁺³_-2 Ω (when 20°C (68°F))
1 and 5	31±4 Ω (when 60°C (140°F))

Check that air is discharged from (B) when air is blown into (A).

Fig 2: Checking Air Discharged From Air Blown Into
Courtesy of SUBARU OF AMERICA, INC.

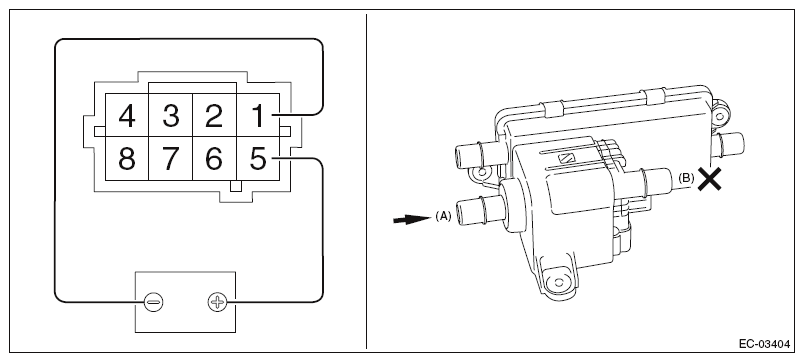

Connect the battery positive terminal to the terminal No. 5 and the battery ground terminal to the terminal No. 1. Check that air does not come out from (B) when air is blown into (A).

Fig 3: Connecting Battery Positive Terminal To Terminal 5 And Battery Ground Terminal To Terminal 1

Courtesy of SUBARU OF AMERICA, INC.
