EGR Pipe: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
Remove the clip (A) from the air intake boot.
Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.
Loosen the clamp (C) which secures the throttle body to the air intake boot.

Fig 1: Identifying Air Intake Boot Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and place the air intake boot aside so that it does not interfere with the work.

Fig 2: Removing Air Intake Boot From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts securing the throttle body to the intake manifold assembly, and tilt the throttle body to the rear side of vehicle.

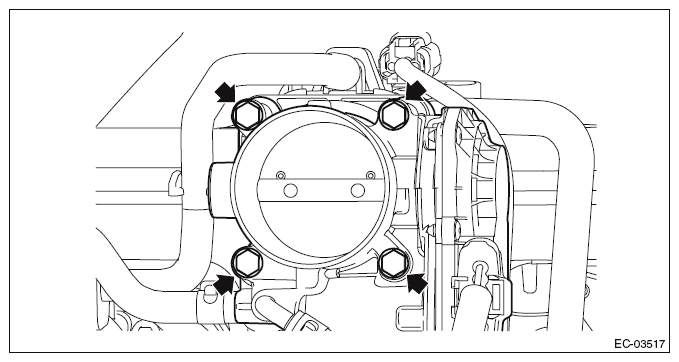

Fig 3: Locating Bolts Securing Throttle Body To Intake Manifold Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts securing the EGR pipe to the intake manifold assembly and EGR control valve, and remove the EGR pipe.

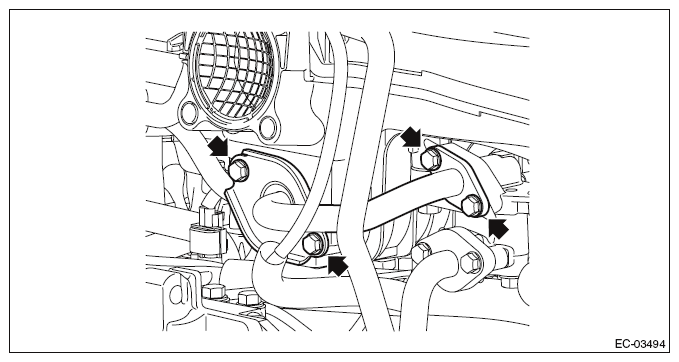

Fig 4: Locating Bolts Securing EGR Pipe To Intake Manifold Assembly And EGR Control Valve

Courtesy of SUBARU OF AMERICA, INC.
