Oil Pressure System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Oil pressure warning system Ref. to WIRING SYSTEM>Oil Pressure Warning Light System>WIRING DIAGRAM .

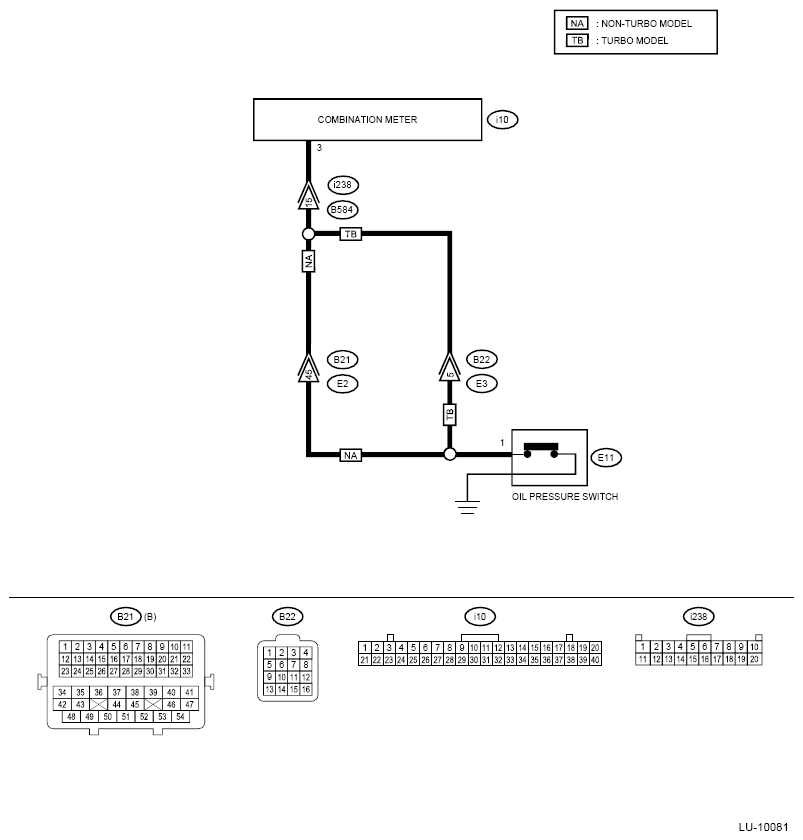

Fig 1: Oil Pressure System Wiring Diagram
G11264547Courtesy of SUBARU OF AMERICA, INC.
