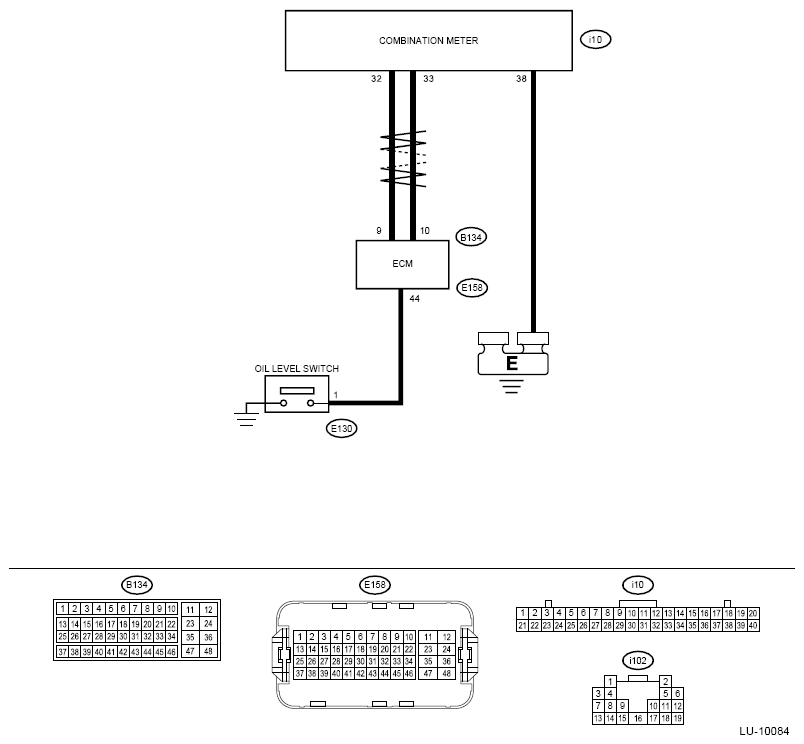

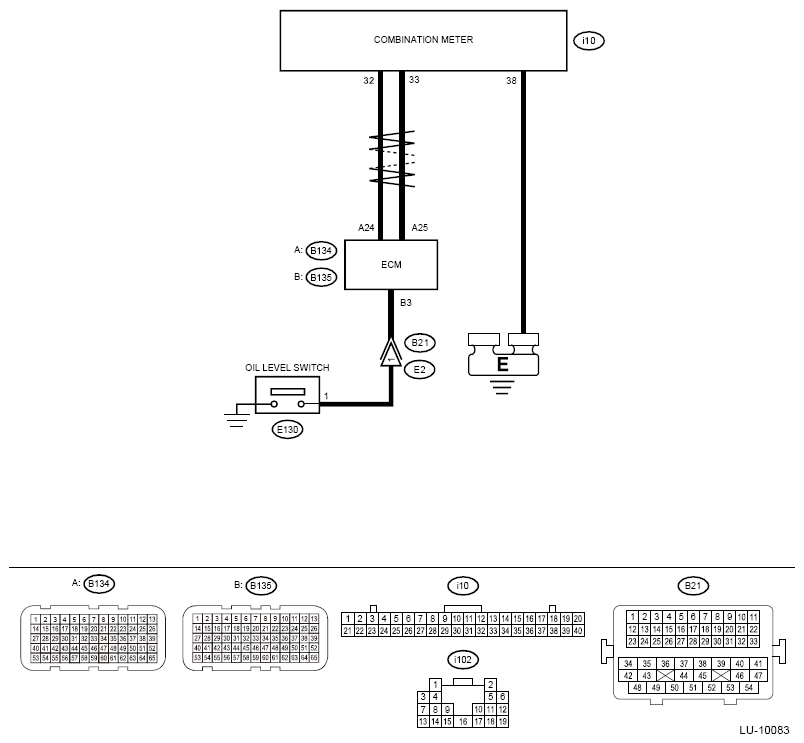

Oil Level Switch: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
- Engine electrical system Ref. to WIRING SYSTEM>Engine Electrical System>WIRING DIAGRAM .
- CAN communication system Ref. to WIRING SYSTEM>CAN Communication System>WIRING DIAGRAM .
- Non-turbo model
