Preparation for Overhaul: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. After removing the engine from the vehicle body, attach the ST to the engine as shown in the figure.
    NOTE: When using a commercially sold engine stand, follow the instructions of engine stand used.

    Tightening torque:

    35 N.m (3.6 kgf-m, 25.8 ft-lb)

    ST1 498457000 ENGINE STAND ADAPTER RH

    ST2 498457100 ENGINE STAND ADAPTER LH

    ST3 18362AA020 ADAPTER

    ST4 499817100 ENGINE STAND

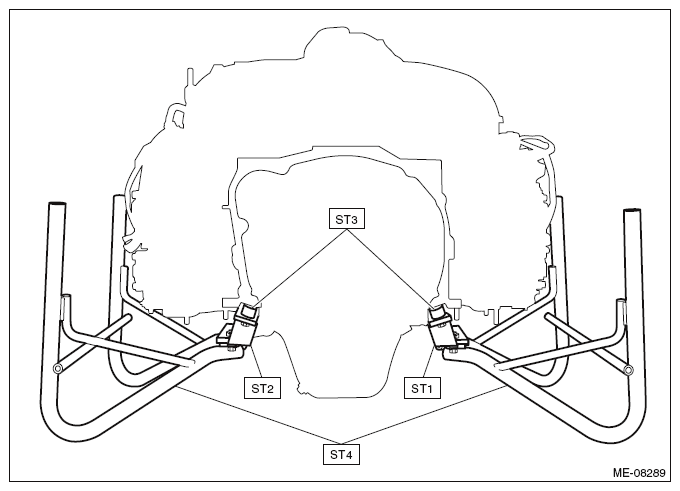

    Fig 1: Attaching ST To Engine
    G10262566Courtesy of SUBARU OF AMERICA, INC.
  2. In this information the procedures described under each index are all connected and stated in order. The procedure for overhauling of the engine will be completed when you go through all steps in the process.

    Therefore, in this information, to conduct the particular procedure within the flow of a section, you need to go back and conduct the procedure described previously in order to do that particular procedure.
