Section 6 (Engine Mechanical (H4DO))
>>
General Description
>>
Components With Torque Specifications
>>
Valve ASSY
Valve ASSY
WARNING:
This page is about a different variant/trim than selected.

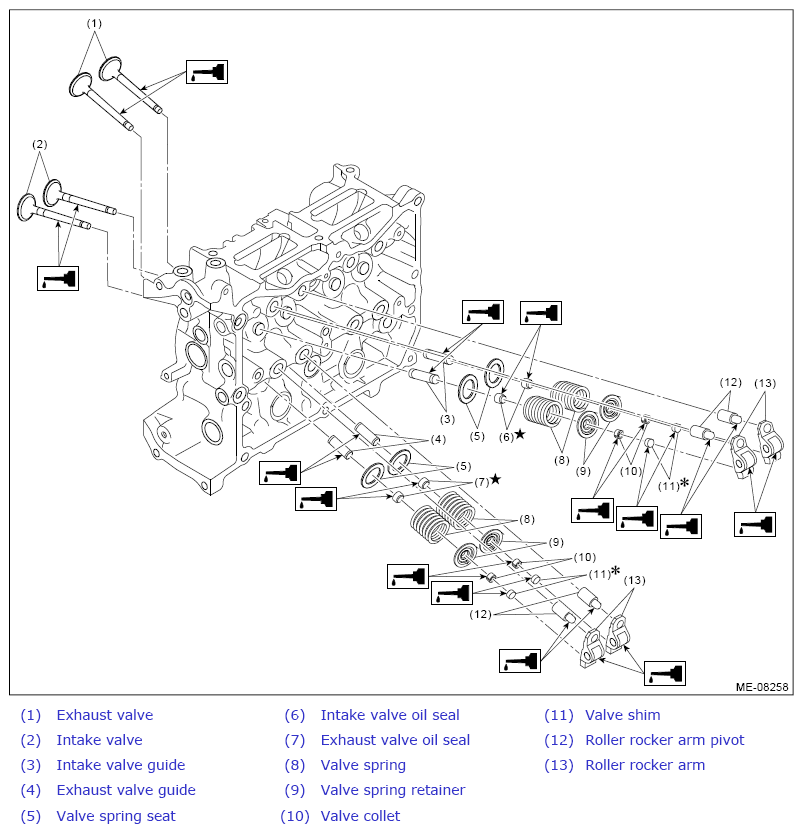

Fig 1: Exploded View Of Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
