Cylinder Block 1

WARNING: This page is about a different variant/trim than selected.

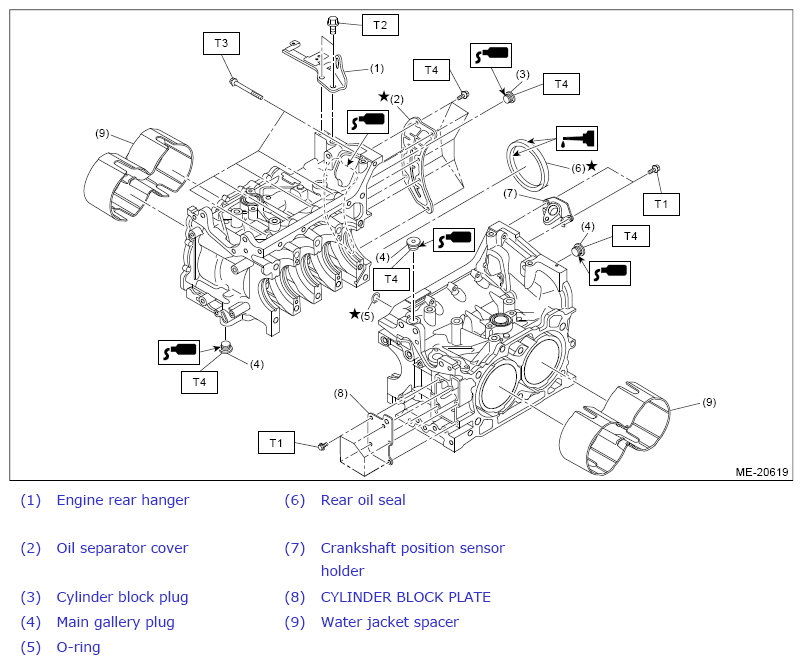

Fig 1: Exploded View Of Cylinder Block 1 With Torque Specification
G11263639Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 21 (2.1, 15.5)

T3: 25 (2.5, 18.4)

T4:  Ref. to MECHANICAL(H4DO)>Cylinder Block>ASSEMBLY>CYLINDER BLOCK .
