Chain Cover

WARNING: This page is about a different variant/trim than selected.

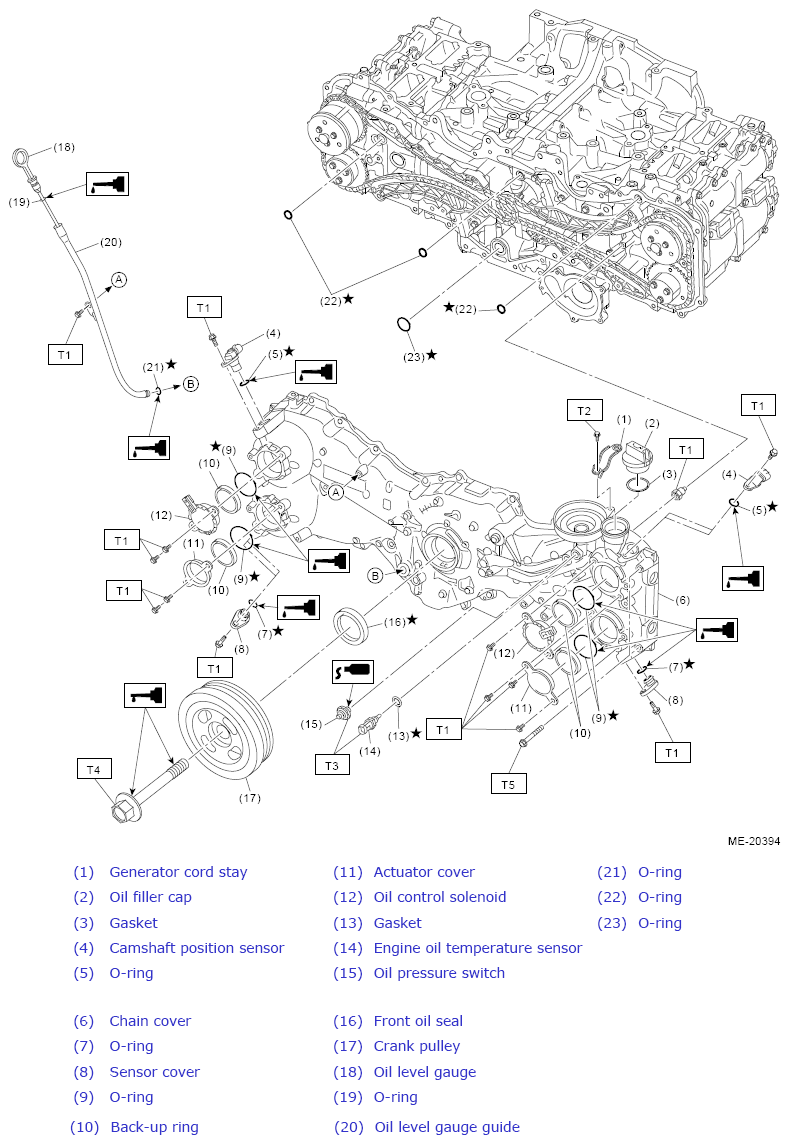

Fig 1: Exploded View Of Chain Cover With Torque Specification
G11263634Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 8 (0.8, 5.9)

T3: 18 (1.8, 13.3)

T4:  Ref. to MECHANICAL (H4DO)>Crank Pulley>INSTALLATION .

T5:  Ref. to MECHANICAL (H4DO)>Chain Cover>INSTALLATION .
