Cylinder Block

WARNING: This page is about a different variant/trim than selected.
  1. Remove the oil separator cover from cylinder block RH.

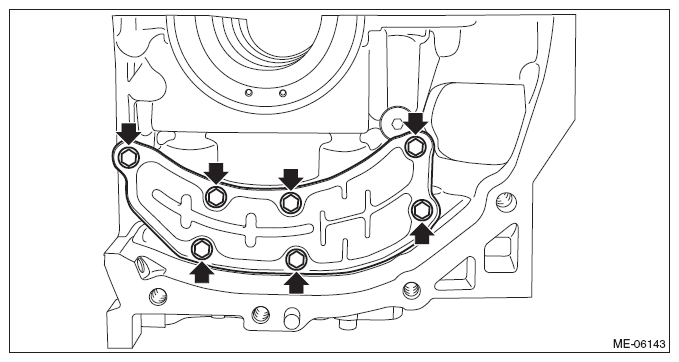

    Fig 1: Locating Oil Separator Cover From Cylinder Block RH Bolts
    G08317230Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the liquid gasket from cylinder block RH.
  3. Remove the cylinder block plug (A) and the main gallery plug (B) from cylinder block RH.

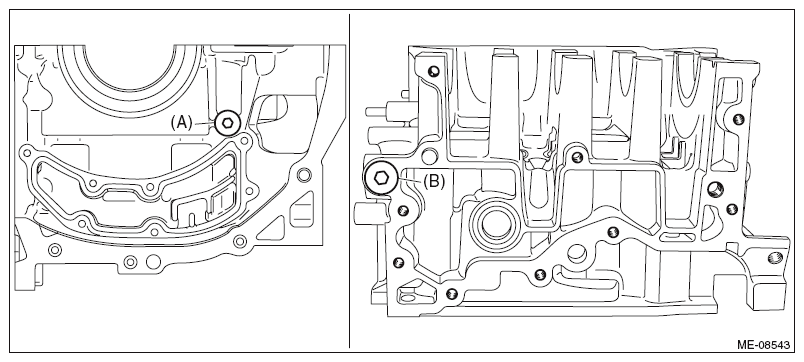

    Fig 2: Removing Cylinder Block Plug And Main Gallery Plug From Cylinder Block RH
    G10262870Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the liquid gasket from the thread holes of the cylinder block RH, and from the threaded portions of cylinder block plug and main gallery plug.
  5. Remove the cylinder block plate from cylinder block LH.

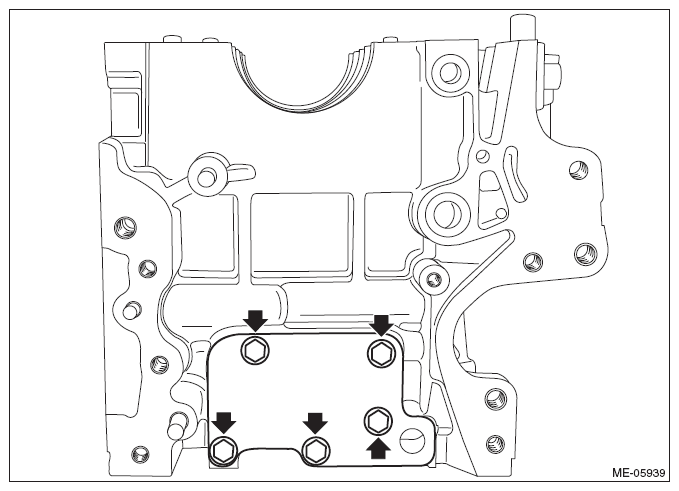

    Fig 3: Locating Cylinder Block Plate From Cylinder Block LH Bolts
    G08317232Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the main gallery plug from cylinder block LH.

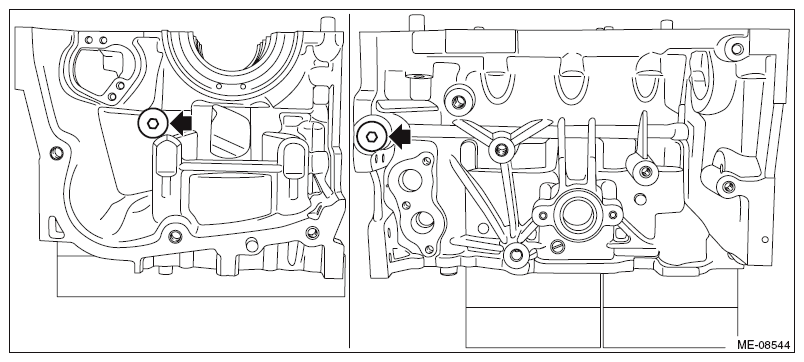

    Fig 4: Locating Main Gallery Plug From Cylinder Block LH
    G10262872Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the liquid gasket from the thread holes of the cylinder block LH and main gallery plug.
