Cam Carrier RH

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the bolts (front camshaft cap RH, intake center camshaft cap RH, intake rear camshaft cap RH, exhaust center camshaft cap RH, and exhaust rear camshaft cap RH) equally, a little at a time in numerical sequence as shown in the figure, and remove each camshaft cap.
    NOTE: Arrange camshaft caps in order so that they can be installed in their original positions.

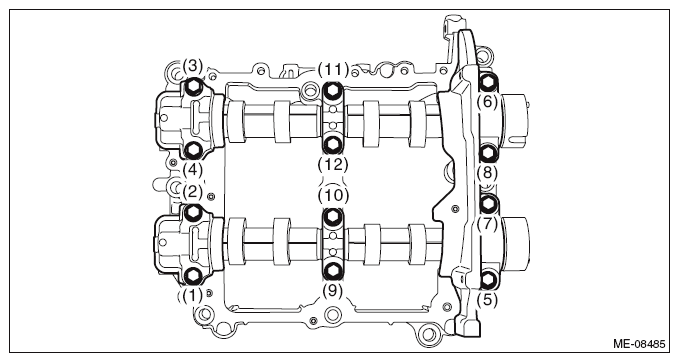

    Fig 1: Camshaft Cap RH Bolts Loosening Sequence
    G10262706Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intake camshaft RH and the exhaust camshaft RH from cam carrier RH.
    Fig 2: Locating Intake Camshaft RH And Exhaust Camshaft RH From Cam Carrier RH
    G08317065Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the filter from cam carrier RH.
    Fig 3: Locating Filter From Cam Carrier RH
    G08580228Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the liquid gasket from cam carrier RH and front camshaft cap RH, intake rear camshaft cap RH and exhaust rear camshaft cap RH.
