Cam Carrier LH

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the bolts (front camshaft cap LH, intake center camshaft cap LH, intake rear camshaft cap LH, exhaust center camshaft cap LH and exhaust rear camshaft cap LH) equally, a little at a time in numerical sequence as shown in the figure, and remove each camshaft cap.
    NOTE: Arrange camshaft caps in order so that they can be installed in their original positions.

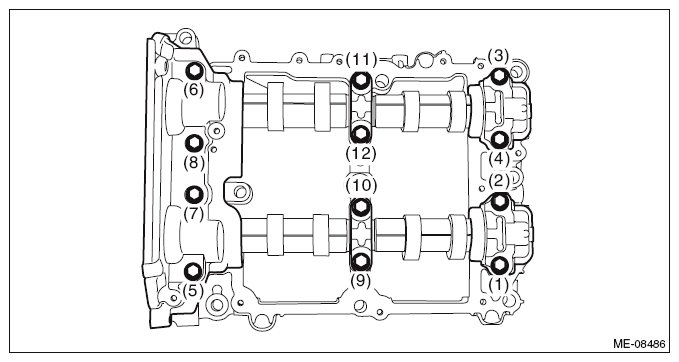

    Fig 1: Camshaft Cap LH Bolts Loosening Sequence
    G10262709Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intake camshaft LH and the exhaust camshaft LH from cam carrier LH.
    Fig 2: Locating Intake Camshaft LH And Exhaust Camshaft LH From Cam Carrier LH
    G08317068Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the filter from cam carrier LH.
    Fig 3: Locating Filter From Cam Carrier LH
    G08580231Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the liquid gasket from cam carrier LH and front camshaft cap LH, intake rear camshaft cap LH and exhaust rear camshaft cap LH.
