Mass Air Flow and Intake Air Temperature Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.

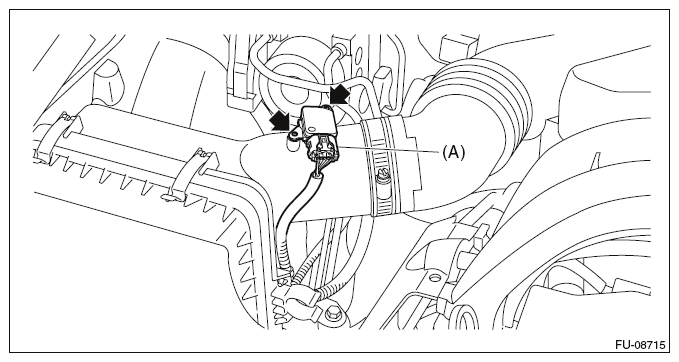

Fig 1: Locating Mass Air Flow And Intake Air Temperature Sensor With Bolts
G10262175Courtesy of SUBARU OF AMERICA, INC.
