Fuel Filler Pipe: Disassembly

WARNING: This page is about a different variant/trim than selected.

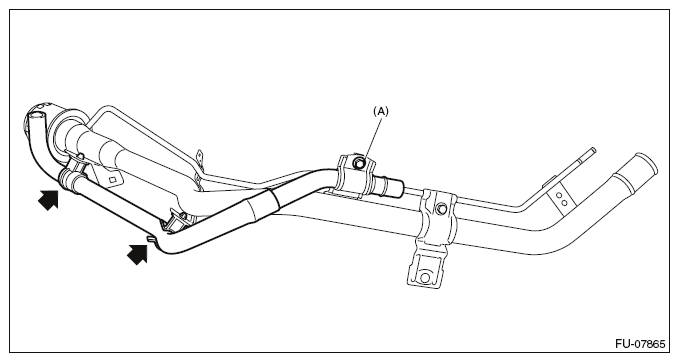

Remove the bracket bolt (A) securing the drain pipe, and remove the drain hose from the clip for the fuel filler pipe.

Fig 1: Locating Drain Hose From Clip
Courtesy of SUBARU OF AMERICA, INC.

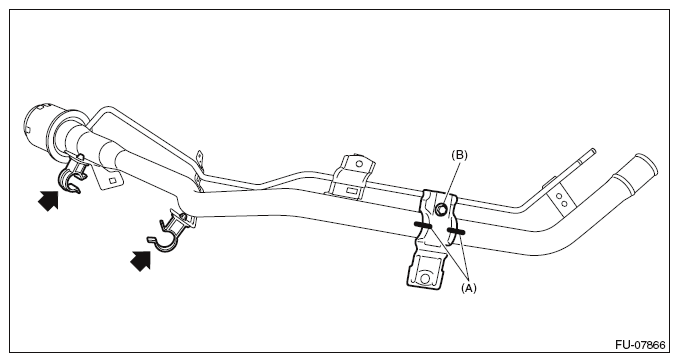

Using a marker pen, make alignment marks (A) on the fuel filler pipe and the bracket.
Remove the bracket bolt (B) securing the fuel filler pipe, and remove the clip from the fuel filler pipe.

Fig 2: Locating Clip From Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the neck holder from the fuel filler pipe.

Fig 3: Locating Neck Holder From Fuel Filler Pipe

Courtesy of SUBARU OF AMERICA, INC.
