Fuel Delivery and Evaporation Lines: Removal

WARNING: This page is about a different variant/trim than selected.

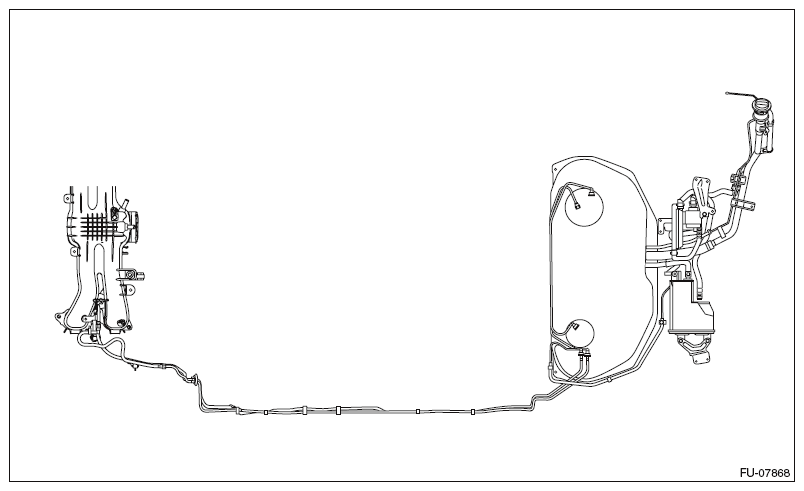

Fig 1: Identifying Fuel Delivery And Evaporation Lines

Courtesy of SUBARU OF AMERICA, INC.

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION: Be careful not to spill fuel.

Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
Open the fuel filler lid and remove the fuel filler cap.
NOTE: This operation is required to release the inner pressure of the fuel tank.
Remove the floor mat. Ref. to EXTERIOR/INTERIOR TRIM>Floor Mat>REMOVAL .
In the engine compartment, disconnect the fuel delivery tube (A) and evaporation hose (B).
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from the tubes using a container or cloth.
NOTE: Disconnect the quick connector as shown in the figure.

Fig 2: Disconnecting Fuel Delivery Tube Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

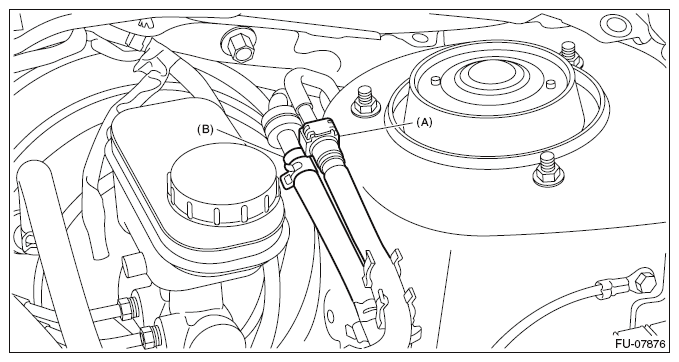

Fig 3: Identifying Fuel Delivery Tube And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Tank>REMOVAL .
Disconnect the quick connector, and remove the fuel delivery tube and jet pump tube from the fuel tank.
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from the tubes using a container or cloth.
NOTE: Disconnect the quick connector as shown in the figure.

Fig 4: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the quick connector and remove the purge pipe.
NOTE: Disconnect the quick connector as shown in the figure.

Fig 5: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Locating Purge Pipe Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the body integrated unit. Ref. to SECURITY AND LOCKS>Body Integrated Unit>REMOVAL .
Remove the fuel pipe assembly from vehicle.
