Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts

WARNING: This page is about a different variant/trim than selected.

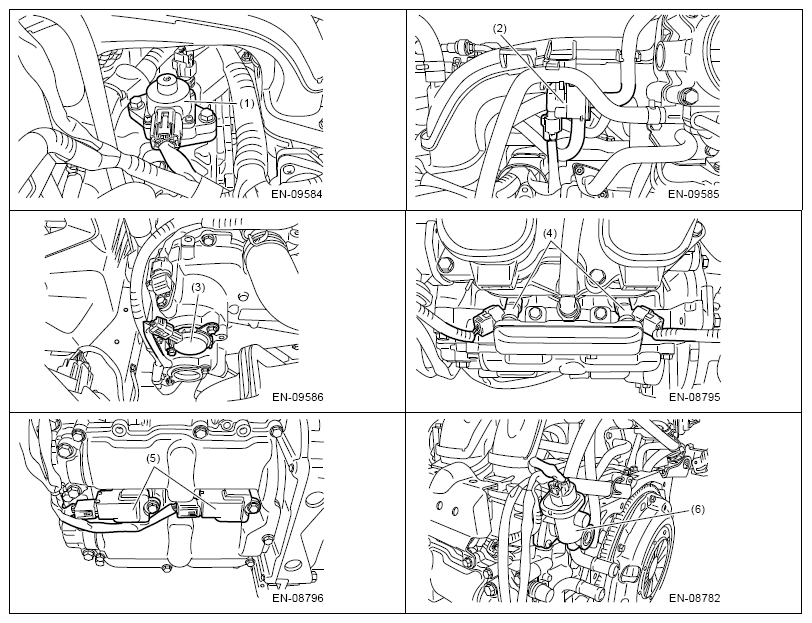

Fig 1: Solenoid Valve, Actuator, Emission Control System And Ignition System Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

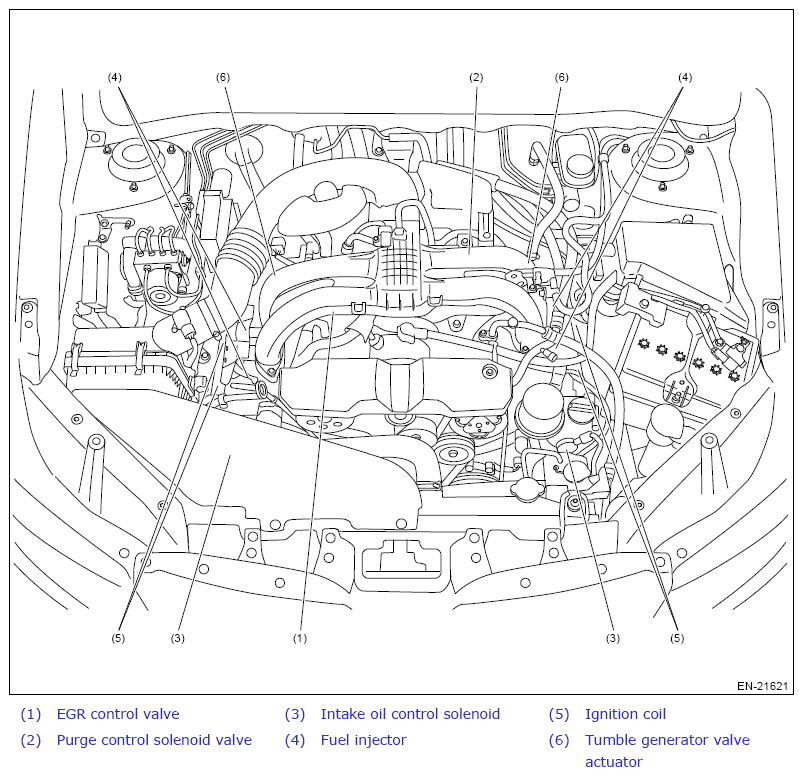

Fig 2: Solenoid Valve, Actuator, Emission Control System And Ignition System Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

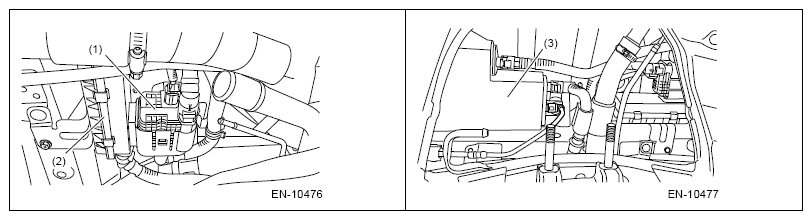

Fig 3: Leak Check Valve Assy Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

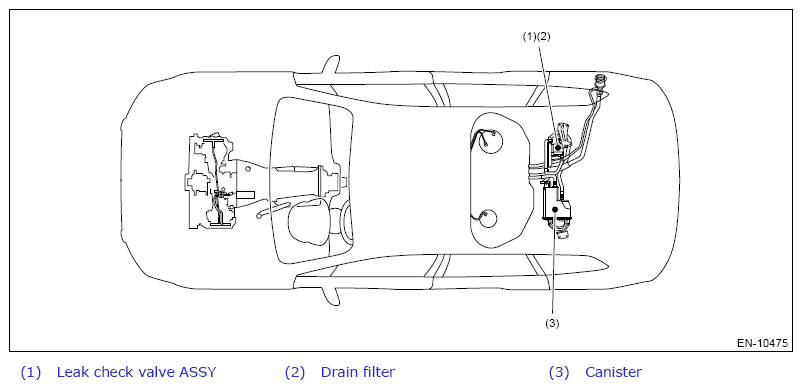

Fig 4: Leak Check Valve Assy Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

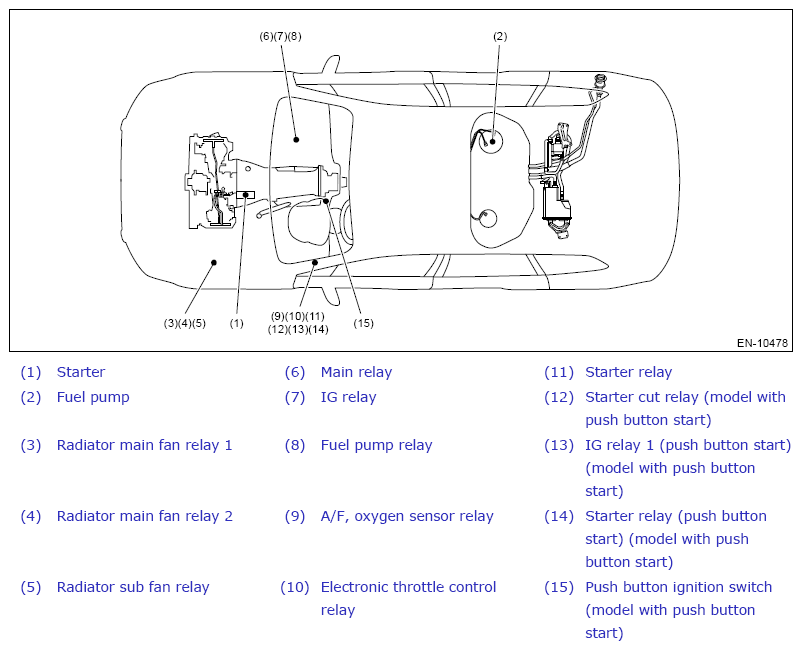

Fig 5: Starter And Fuel Pump Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

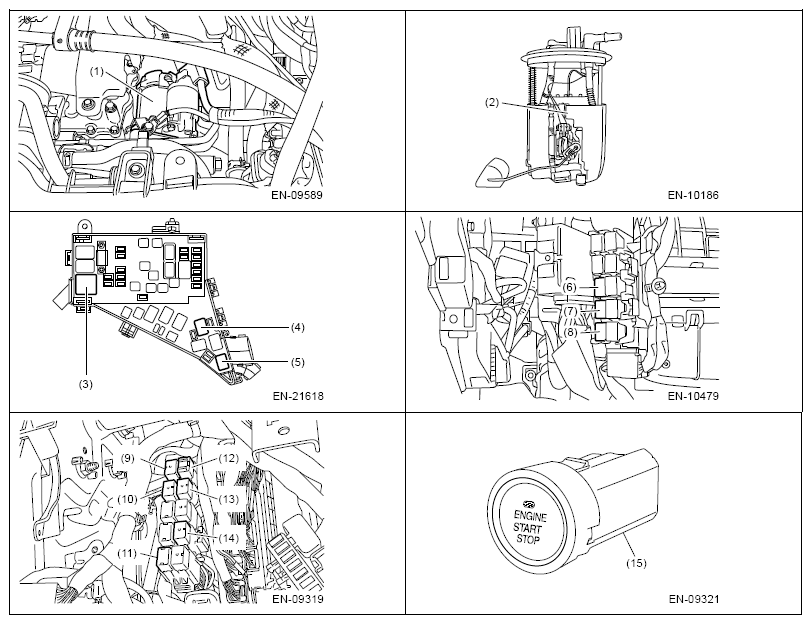

Fig 6: Starter And Fuel Pump Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
