Section 4 (Engine Control System (Diagnostics - Introduction) (H4DO)): Electrical Component Location: Location: Sensor

WARNING: This page is about a different variant/trim than selected.

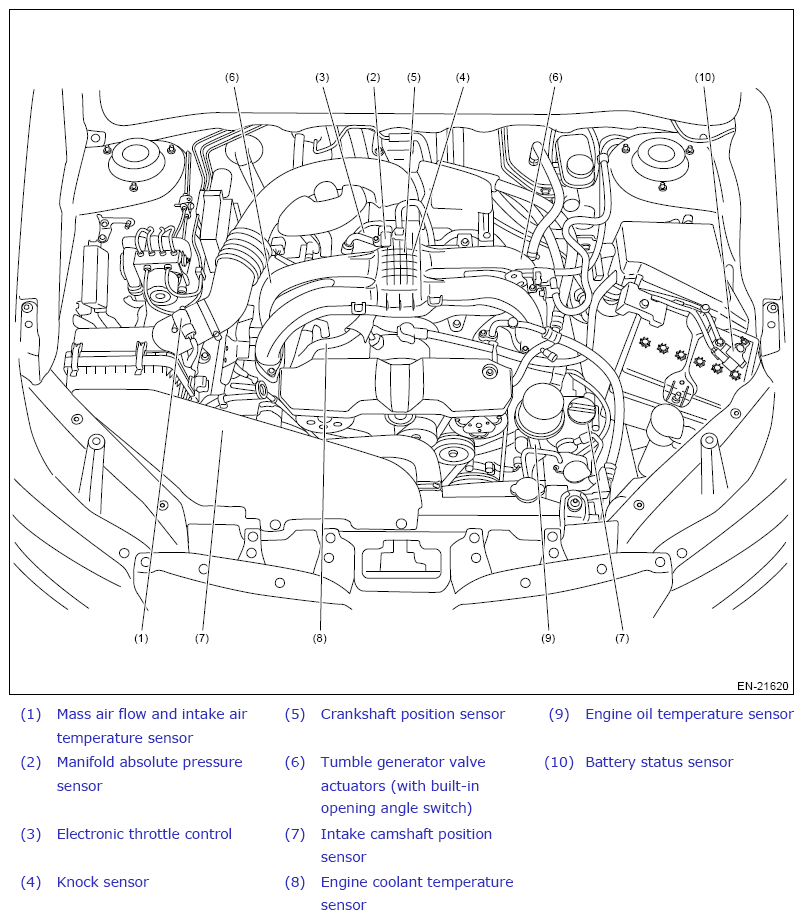

Fig 1: Sensor Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

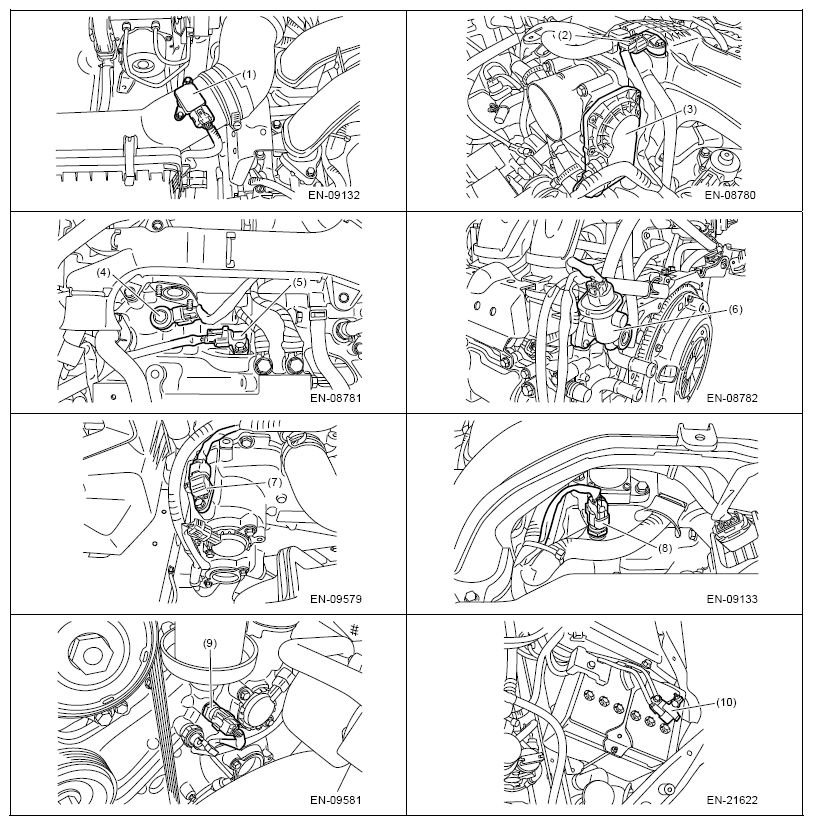

Fig 2: Sensor Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

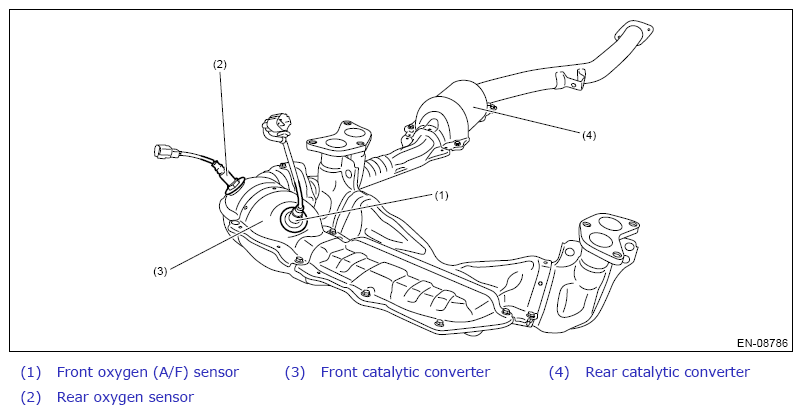

Fig 3: Front Catalytic Converter Electrical Component Location

Courtesy of SUBARU OF AMERICA, INC.

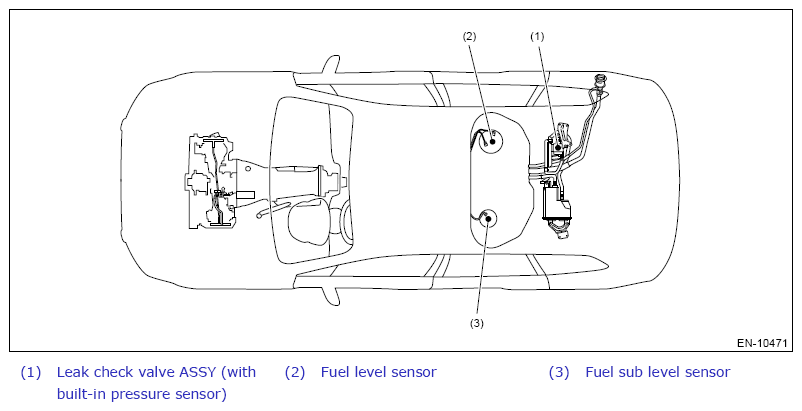

Fig 4: Fuel Level Sensor Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

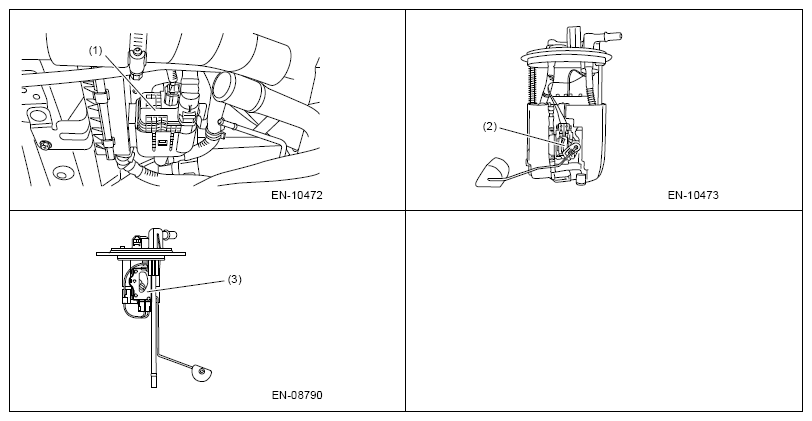

Fig 5: Fuel Level Sensor Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
