Drive Cycle O

WARNING: This page is about a different variant/trim than selected.

DTC	Item	Condition
P0441	EVAP SYSTEM (CPC) INCORRECT PURGE FLOW	-

Diagnostic procedure:

WARNING: When performing drive cycle O on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.

Drive according to the drive pattern described below.

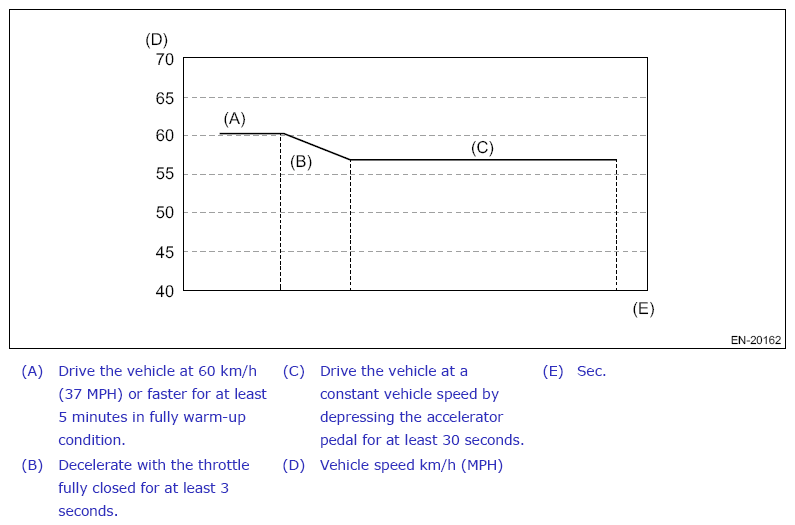

Fig 1: Vehicle Speed Driving Pattern
Courtesy of SUBARU OF AMERICA, INC.
Park the vehicle on a safe place.
NOTE: Driving method while vehicle is driven to a stop at safe place is not restricted.
With the vehicle idling, read the temporary diagnostic code of DTC using Subaru Select Monitor or general scan tool.

NOTE:

For detailed operation procedures, refer to "Read Diagnostic Trouble Code (DTC)". Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Read Diagnostic Trouble Code (DTC) .
In the step 3), if the DTC is not displayed on the Subaru Select Monitor or general scan tool display screen, the trouble is resolved.
