Water Pump Pulley

WARNING: This page is about a different variant/trim than selected.

Using the ST, install the water pump pulley.
ST1 18355AA000 PULLEY WRENCH

ST2 18334AA030 PULLEY WRENCH PIN SET

Tightening torque:

14 N.m (1.4 kgf-m, 10.3 ft-lb)

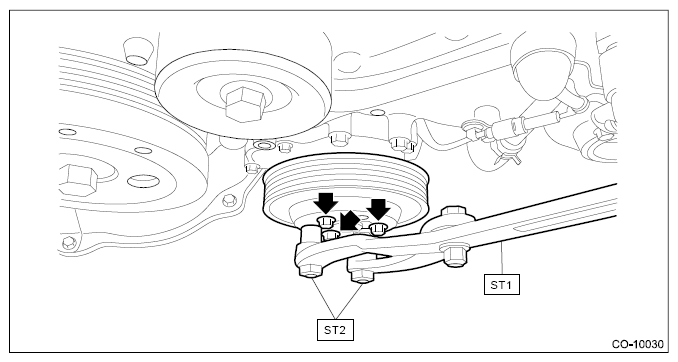

Fig 1: Locating Water Pump Pulley Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Ref. to MECHANICAL(H4DO)>V-belt>INSTALLATION .
