CVTF Cooler (With Warmer Feature) Side

WARNING: This page is about a different variant/trim than selected.
  1. Install a gasket to thermostat.
    NOTE: Use a new gasket.
  2. Install the thermostat and thermostat cover.
    NOTE: Install the parts with the air vent hole facing upward.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

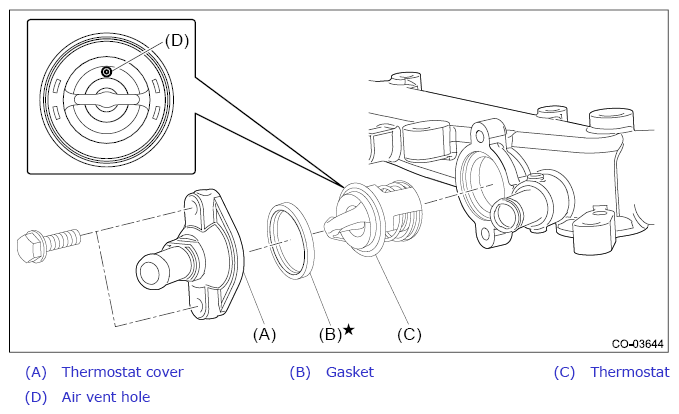

    Fig 1: Exploded View Of Installing Parts With Air Vent Hole Facing Upward
    G11264203Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the engine coolant hose to the thermostat cover.

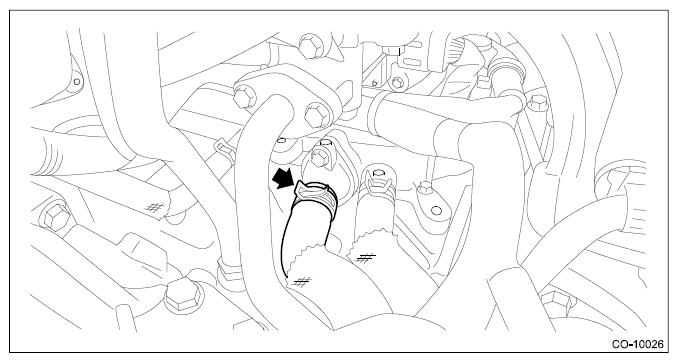

    Fig 2: Locating Engine Coolant Hose Clamp
    G11264199Courtesy of SUBARU OF AMERICA, INC.
  4. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>INSTALLATION .
  5. Lift up the vehicle.
  6. Install the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>INSTALLATION .
  7. Lower the vehicle.
  8. Fill engine coolant. Ref. to COOLING(H4DO)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
