Radiator Sub Fan and Fan Motor: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip which holds the sub fan motor connector onto the radiator sub fan shroud.
  2. Disconnect the radiator sub fan from the sub fan motor.

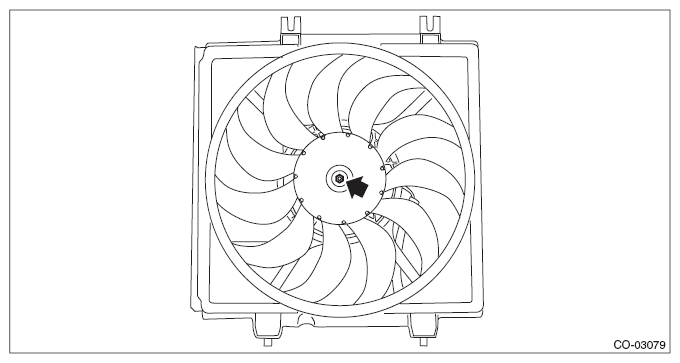

    Fig 1: Locating Radiator Sub Fan Nut
    G08548240Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the sub fan motor from the radiator sub fan shroud.
Fig 2: Locating Radiator Sub Fan Shroud Bolts
G08315785Courtesy of SUBARU OF AMERICA, INC.
