Radiator Main Fan and Fan Motor: Assembly

WARNING: This page is about a different variant/trim than selected.

Assemble in the reverse order of disassembly.

NOTE:

Fig 1: Installing Radiator Side Gasket

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

4.41 N.m (0.45 kgf-m, 3.25 ft-lb)

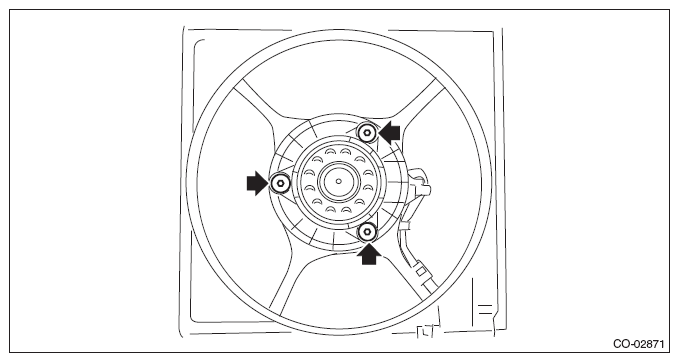

Fig 2: Locating Radiator Main Fan Shroud Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3.4 N.m (0.3 kgf-m, 2.5 ft-lb)

Fig 3: Locating Main Fan Motor Connector Clip

Courtesy of SUBARU OF AMERICA, INC.
