Radiator Fan System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Radiator fan system Ref. to WIRING SYSTEM>Radiator Fan System>WIRING DIAGRAM .

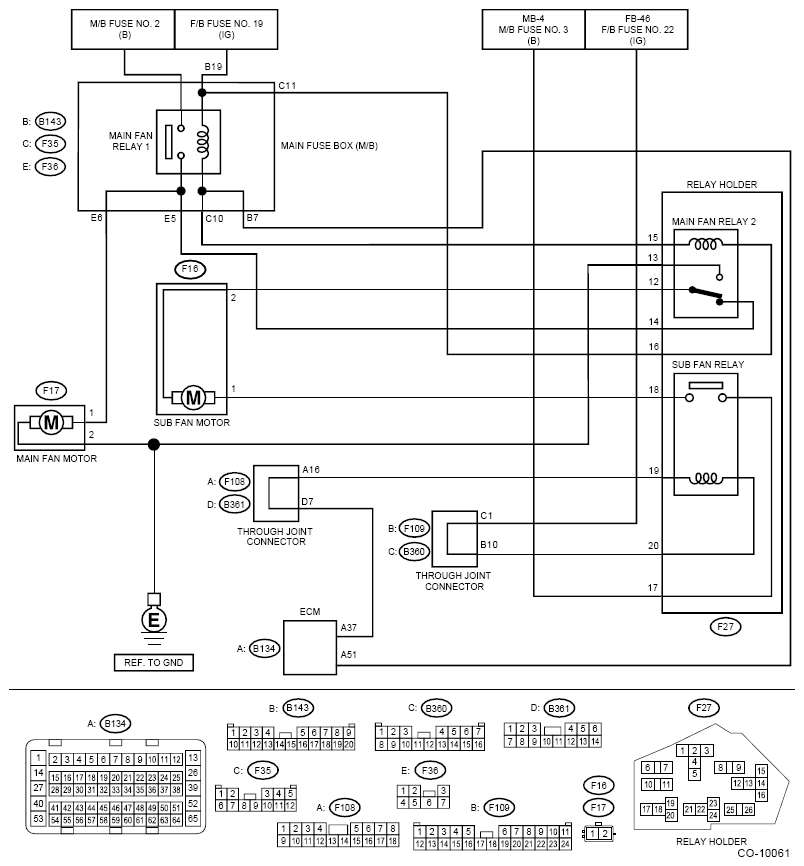

Fig 1: Radiator Fan System Wiring Diagram
G11264155Courtesy of SUBARU OF AMERICA, INC.
