Turbo Model

WARNING: This page is about a different variant/trim than selected.

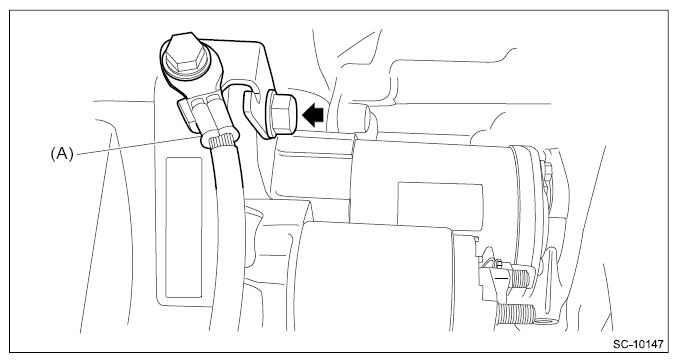

Fig 1: Identifying Starter Cable Stay Terminal
G11264707Courtesy of SUBARU OF AMERICA, INC.
  1. Remove the clip (A), lift the front of the collector cover in the direction of arrow, and then remove the collector cover.
    1. Remove the clip (A).
    2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
    3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
    Fig 2: Removing Starter Collector Cover (Turbo Model)
    G10403792Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
  3. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  4. Disconnect the connector (A) and terminal (B) from starter.

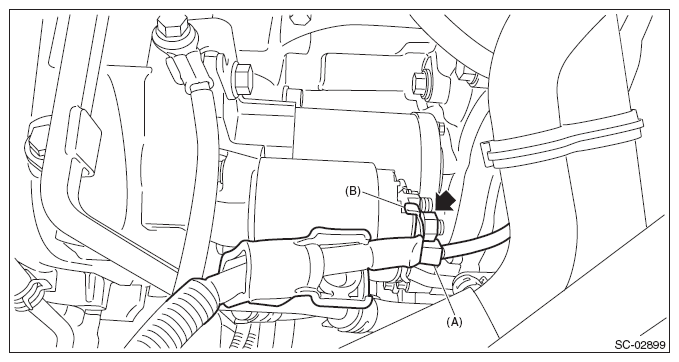

    Fig 3: Identifying Starter Connector And Terminal
    G09476678Courtesy of SUBARU OF AMERICA, INC.
  5. Lift up the vehicle.
  6. Remove the bolt which secures the CVTF cooler pipe to the transmission, and move the CVTF cooler pipe to the left side of the transmission.
    Fig 4: Locating CVTF Cooler Pipe And Transmission Bolt
    G09476679Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the nut at the bottom of the starter.

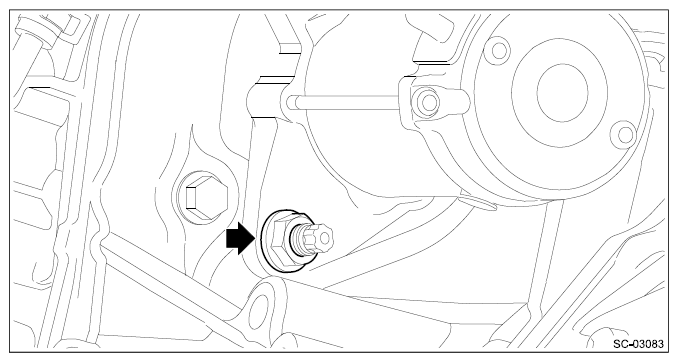

    Fig 5: Locating Starter Bottom Nut
    G11264706Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Disconnect the terminal (A) from the cable stay.
    CAUTION: In order to prevent damaging the terminal (A), fix the terminal (A) when loosing the bolt, and avoid the part from rotating together while loosening the bolt.
  10. Remove the bolt (B) at the top of the starter, and remove the cable stay and starter from the transmission.

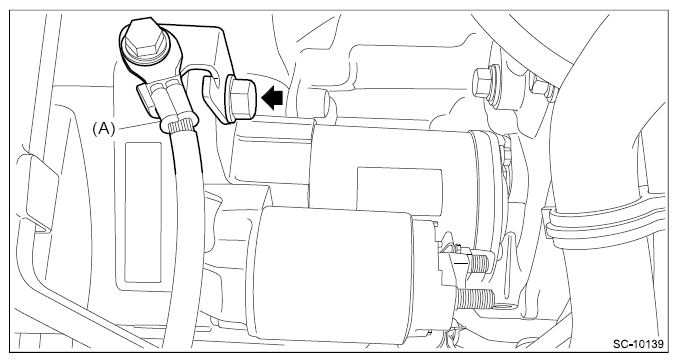

Fig 6: Locating Cable Stay Terminal And Starter Bolt
G11264712Courtesy of SUBARU OF AMERICA, INC.
