Turbo Model

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Tighten the starter and cable stay (a) together using the upper bolt securing the starter.

Tightening torque:

T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

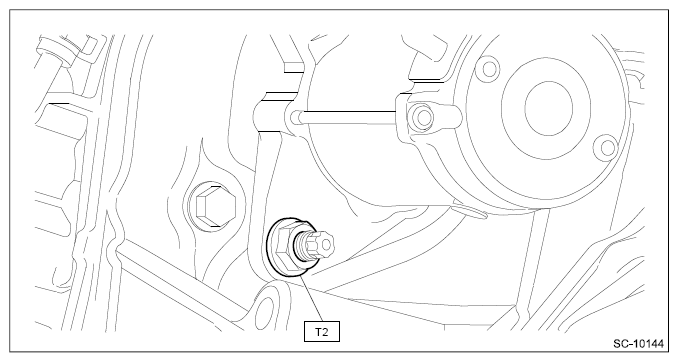

Fig 1: Turbo Model Starter Cable Stay Bolts With Torque Specifications (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

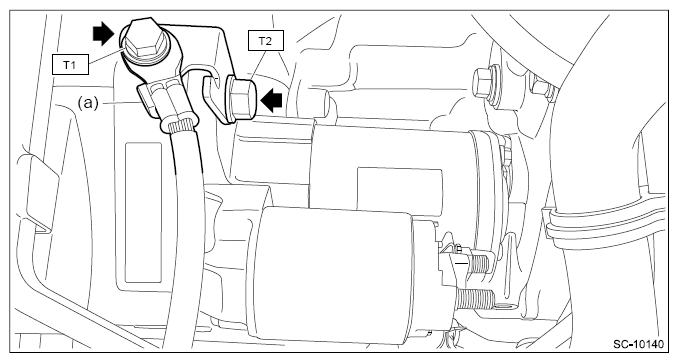

Fig 2: Identifying Turbo Model Starter Cable Stay Bolts With Torque Specifications (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

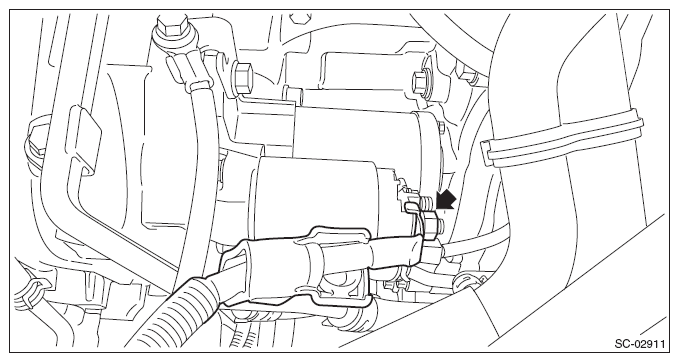

Fig 3: Identifying Turbo Model Starter Cable Stay Bolts With Torque Specifications (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

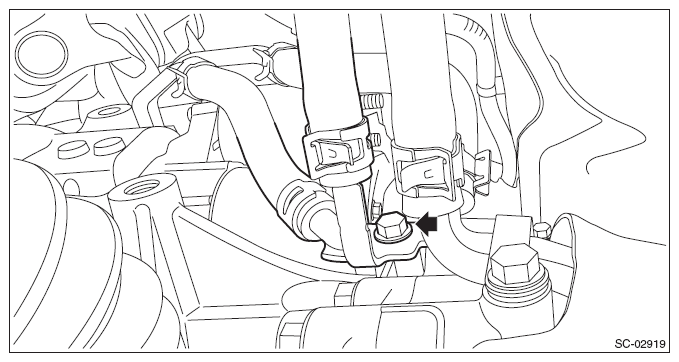

Fig 4: Identifying Turbo Model Starter Cable Stay Bolts With Torque Specifications (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
