Non-Turbo Model

WARNING: This page is about a different variant/trim than selected.

Remove the cover from the generator.

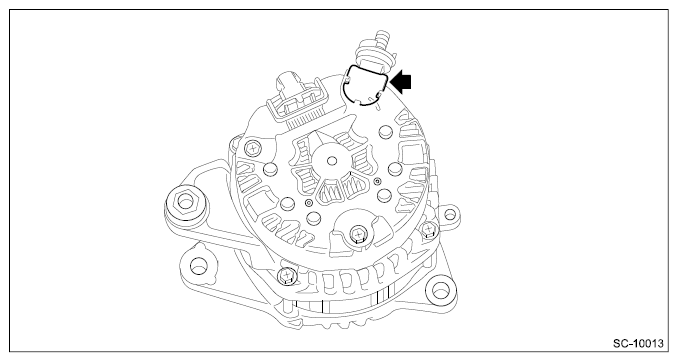

Fig 1: Locating Generator Cover (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove the terminal B from the generator.

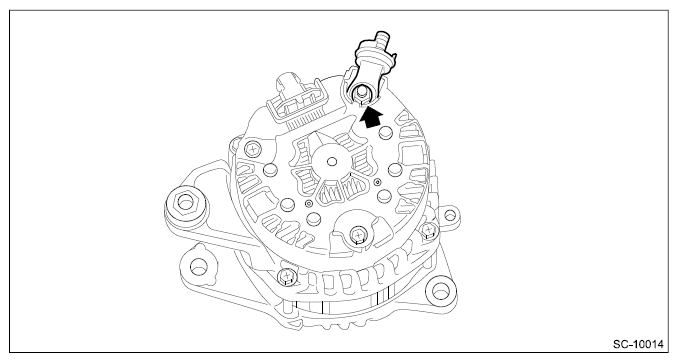

Fig 2: Locating Generator Terminal B
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear cover from the generator.

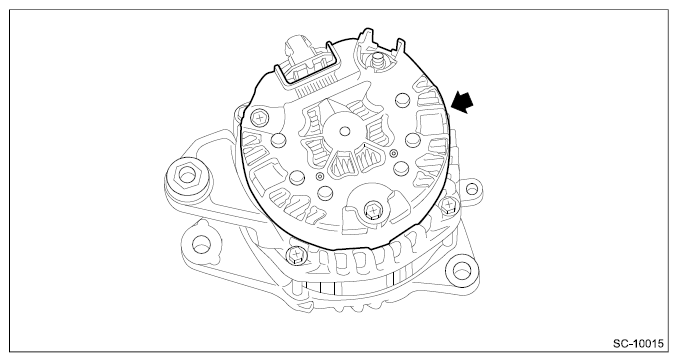

Fig 3: Locating Generator Rear Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the brush assembly from the generator.
NOTE: To prevent damage to the slip ring, set a socket wrench, etc. with an appropriate size between the brush and the slip ring.

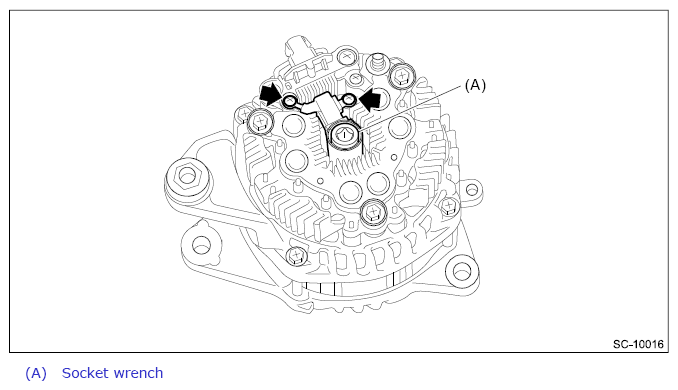

Fig 4: Locating Generator Brush Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the IC regulator from the generator.

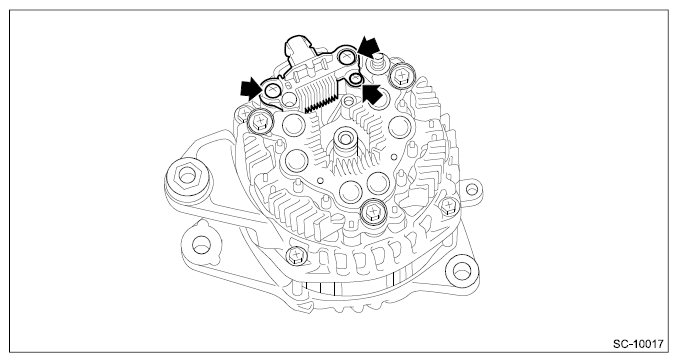

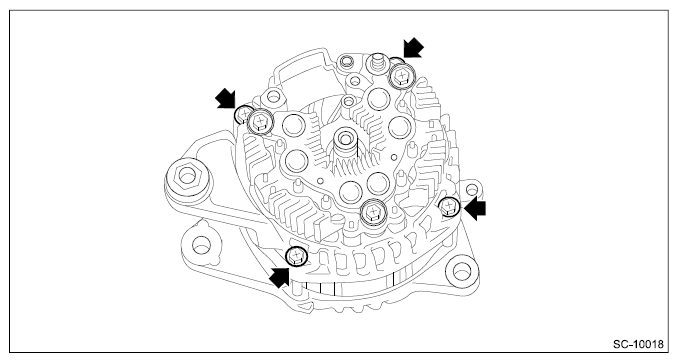

Fig 5: Locating Generator IC Regulator Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the through bolt from the generator.

Fig 6: Locating Generator Through Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert a flat tip screwdriver or similar tool wrapped with protective tape into the gap between stator core and the front cover to disassemble.
CAUTION:
- Do not remove the bearing cover from the rear cover assembly.
- If the bearing cover has been loosen or disengaged from the rear cover assembly, replace the rear cover assembly.

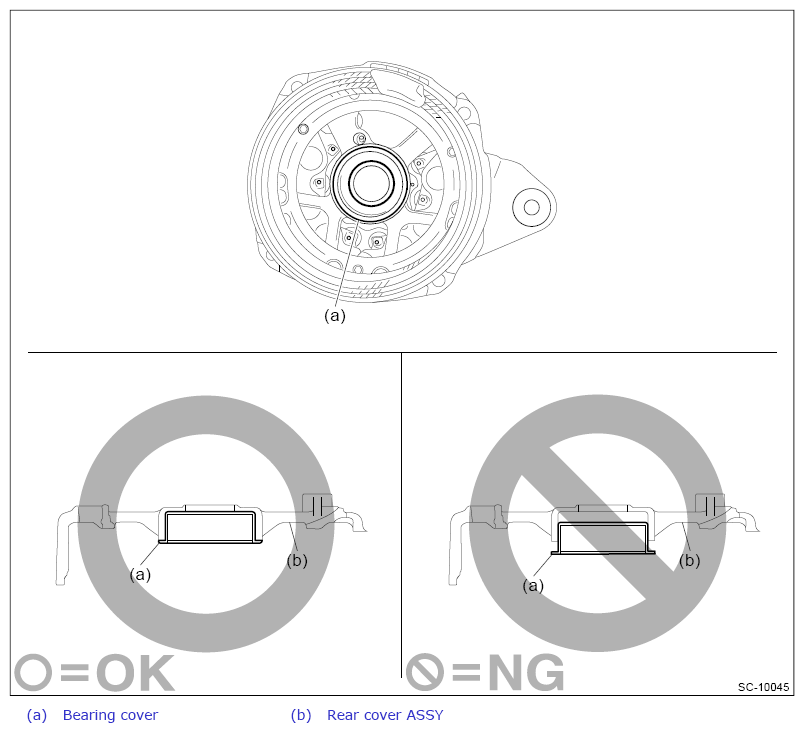

Fig 7: Caution For Bearing Cover And Rear Cover Assembly Installation
Courtesy of SUBARU OF AMERICA, INC.

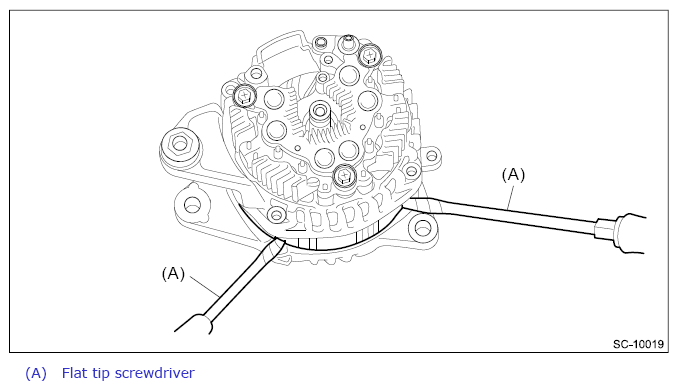

Fig 8: Inserting Flat Tip Screwdriver Into Stator Core And Front Cover Gap
Courtesy of SUBARU OF AMERICA, INC.
Remove the cap from the generator.

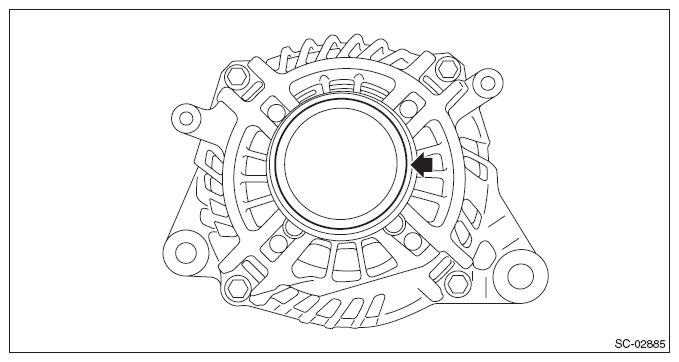

Fig 9: Locating Generator Cap
Courtesy of SUBARU OF AMERICA, INC.
Hold the rotor on a vise and remove the pulley.
CAUTION: When holding the rotor with a vise, place aluminum plates or wooden pieces on the vise jaws to prevent rotor from damage.

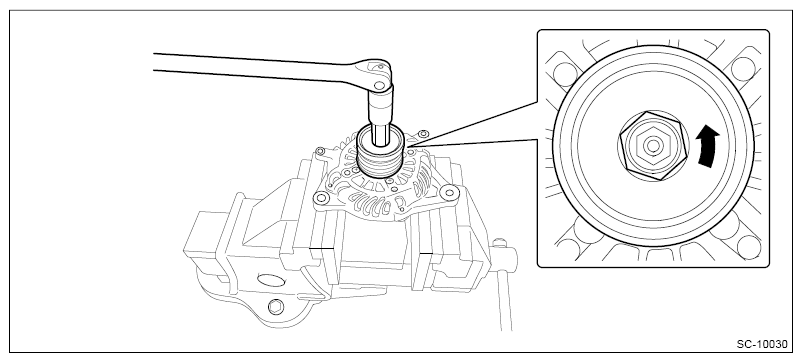

Fig 10: Removing Rotor Pulley
Courtesy of SUBARU OF AMERICA, INC.
Remove the rotor from the front cover.

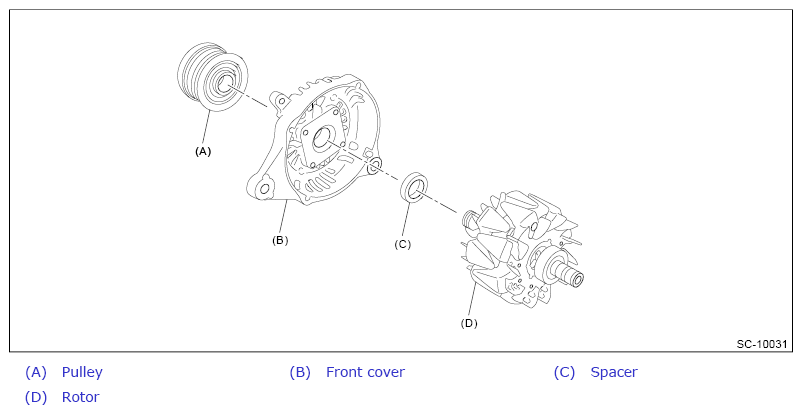

Fig 11: Exploded View Of Rotor From Front Cover
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the ball bearings.

Remove the bolt, and then detach the bearing retainer.

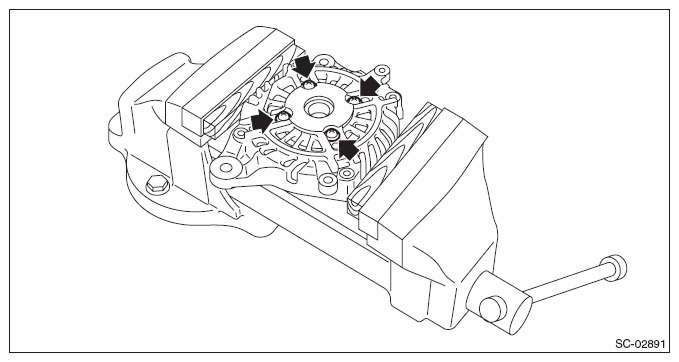

Fig 12: Locating Bearing Retainer Bolts
Courtesy of SUBARU OF AMERICA, INC.
Firmly attach an appropriate tool (such as a correct size socket wrench) to the bearing inner race.

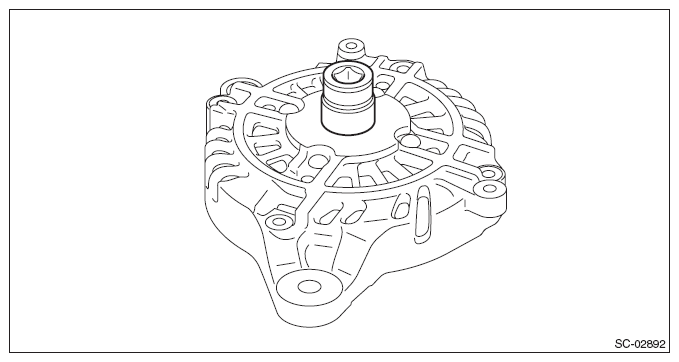

Fig 13: Installing Socket Wrench Onto Bearing Inner Race
Courtesy of SUBARU OF AMERICA, INC.
Use the press to push the ball bearings out from the front cover.
