Section 2 (Starting System & Charging System (H4DO)): Battery: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the positive (+) terminal after disconnecting the negative (-) terminal of battery.
  2. Remove the battery cable holder from the battery rod.
  3. Remove the flange nut from battery rod and remove battery holder.

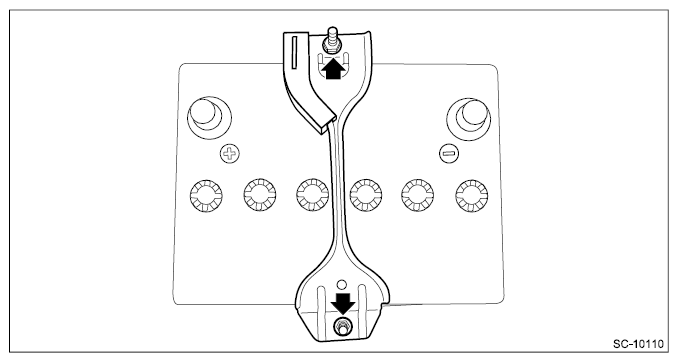

    Fig 1: Locating Battery Rod Flange Nuts
    G11264816Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the battery.
