Battery Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Disconnect the connector (A) from the battery sensor, and remove the battery sensor.

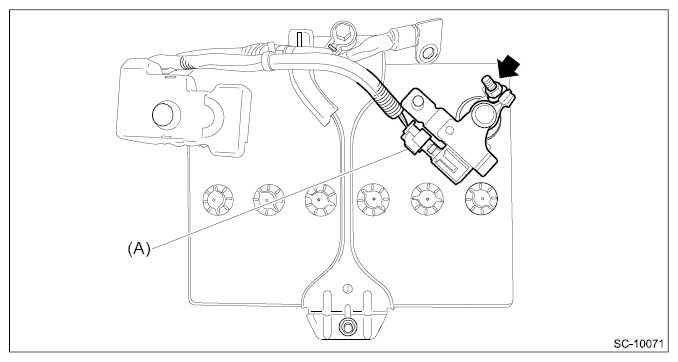

Fig 1: Locating Battery Sensor Connector
G11264828Courtesy of SUBARU OF AMERICA, INC.
