Battery Current & Temperature Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
Remove the battery terminal boot.

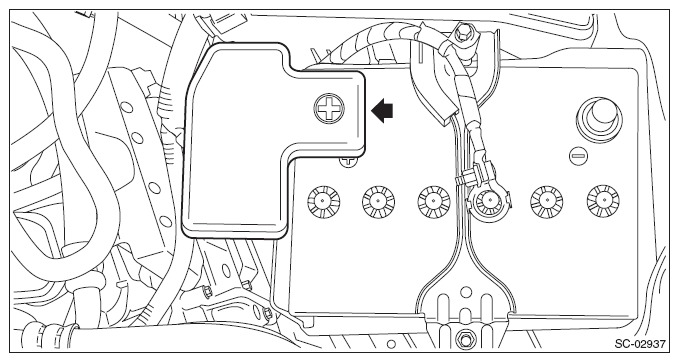

Fig 1: Locating Battery Current And Temperature Sensor Battery Terminal Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the nut which holds the battery current & temperature sensor.
CAUTION:
- Hold the terminal bracket with your hand when loosening the nut to avoid deforming the bracket.
- While working, be sure to protect metal parts with cloth.

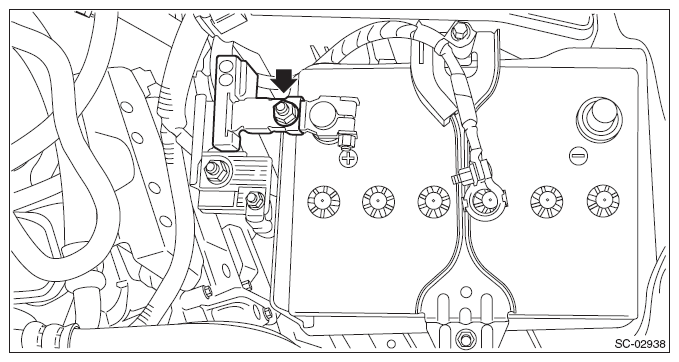

Fig 2: Locating Battery Current And Temperature Sensor Nut
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from the battery current & temperature sensor.

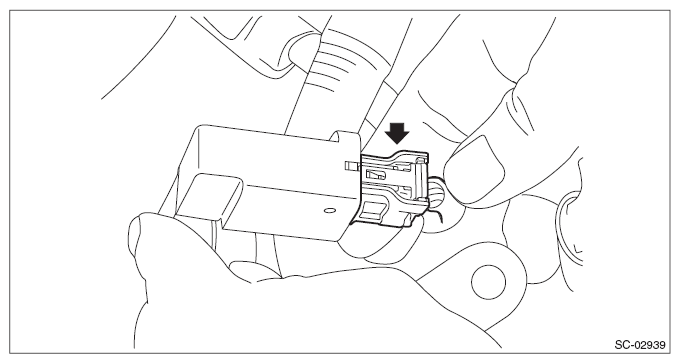

Fig 3: Disconnecting Battery Current And Temperature Sensor Connector

Courtesy of SUBARU OF AMERICA, INC.
