Section 17 (Engine Control System (Diagnostics) (P0171 To P0685) (H4DO))
>>
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0606 Control Module Processor
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

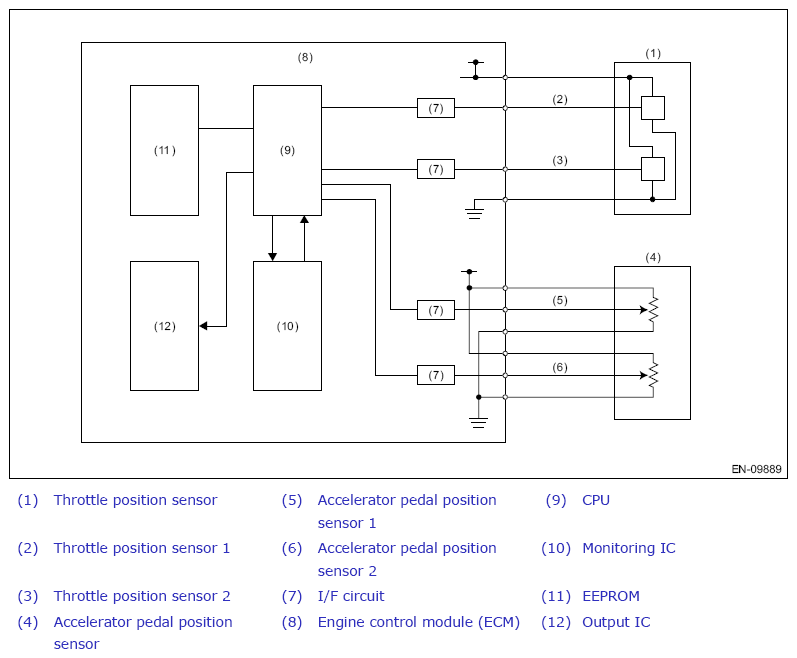

Fig 1: Throttle Position Sensor Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
