Component Description

WARNING: This page is about a different variant/trim than selected.

Leak check valve assembly consists of the pressure sensor, the reference orifice (diameter of 0.02 inch), the vacuum pump which introduces the negative pressure into evaporative emission system, and the switching valve which switches the passage to introduce the negative pressure.

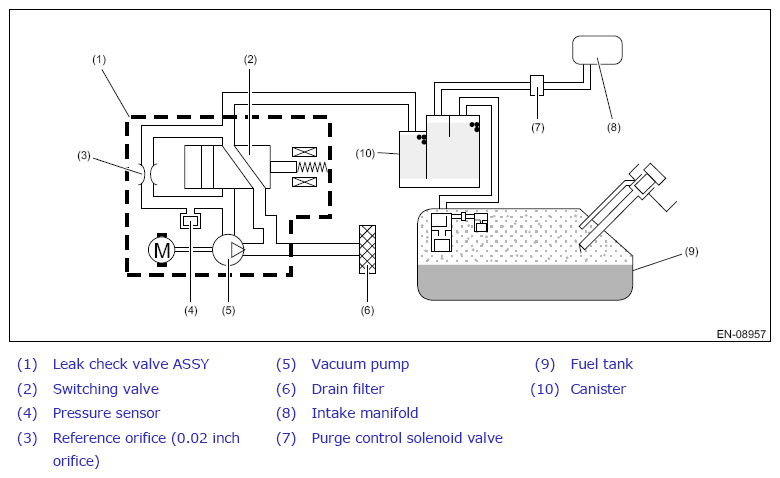

Fig 1: Pressure Sensor Leak Check Valve Assembly Circuit Diagram
G11272789Courtesy of SUBARU OF AMERICA, INC.
