DTC P0335 Crankshaft Position Sensor "A" Circuit: Notes
WARNING: This page is about a different variant/trim than selected.
DTC detecting condition:
Immediately at fault recognition
Trouble symptom:
- Engine stalls.
- Failure of engine to start
CAUTION:
- After servicing or replacing faulty parts, perform Clear Memory Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Clear Memory Mode . and Inspection Mode Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Inspection Mode .
- Use the check board when measuring the ECM terminal voltage and resistance.

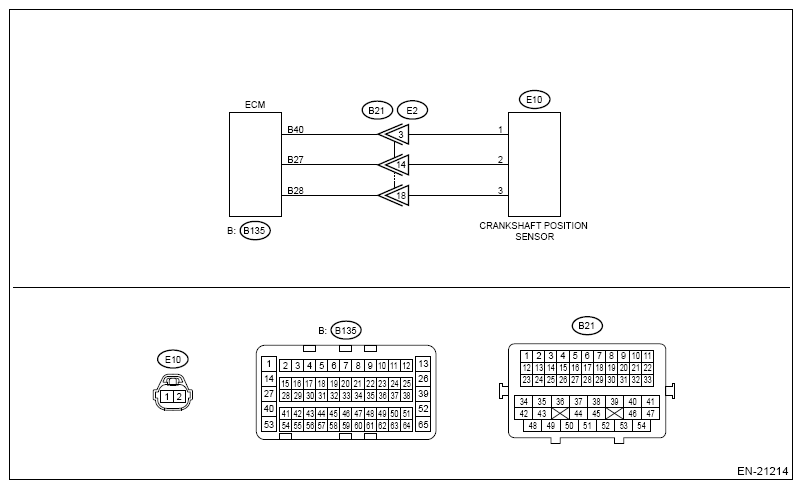

Wiring diagram:
Engine Electrical System Ref. to WIRING SYSTEM>Engine Electrical System>WIRING DIAGRAM .
- CHECK INSTALLATION CONDITION OF CRANKSHAFT POSITION SENSOR
.
Is the crankshaft position sensor installation bolt tightened securely?
- Yes: Go to 2 .
- No: Tighten the crankshaft position sensor installation bolt securely. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Crankshaft Position Sensor>INSTALLATION .
- CHECK CRANKSHAFT POSITION SENSOR
.
- Turn the ignition switch to OFF.
- Remove the crankshaft position sensor.
- Measure the resistance between terminals of crankshaft position sensor.
Terminals
No. 1 -No. 2:
Is the resistance between 1 and 4 kΩ?
- Yes: Go to 3 .
- No: Replace the crankshaft position sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Crankshaft Position Sensor .
- CHECK HARNESS BETWEEN ECM AND CRANKSHAFT POSITION SENSOR CONNECTOR
.
- Disconnect the connector from ECM.
- Measure the resistance of harness between ECM connector and crankshaft position sensor connector.
Connector & terminal
(B135) No. 40 - (E10) No. 1:
(B135) No. 27 - (E10) No. 2:
Is the resistance less than 1 Ω?
- Yes: Repair the poor contact of ECM and crankshaft position sensor connector.
- No: repair the harness and connector.NOTE: In this case, repair the following item:
- Open circuit in harness between ECM connector and crankshaft position sensor connector
- Poor contact of coupling connector
