DTC P2127 Throttle/Pedal Position Sensor/Switch "E" Circuit Low: DTC detecting condition

WARNING: This page is about a different variant/trim than selected.

Immediately at fault recognition

Trouble symptom:

Improper idling
Poor driving performance

CAUTION:

After servicing or replacing faulty parts, perform Clear Memory Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Clear Memory Mode . and Inspection Mode Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Inspection Mode .
Use the check board when measuring the ECM terminal voltage and resistance.

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>Engine Electrical System>WIRING DIAGRAM .

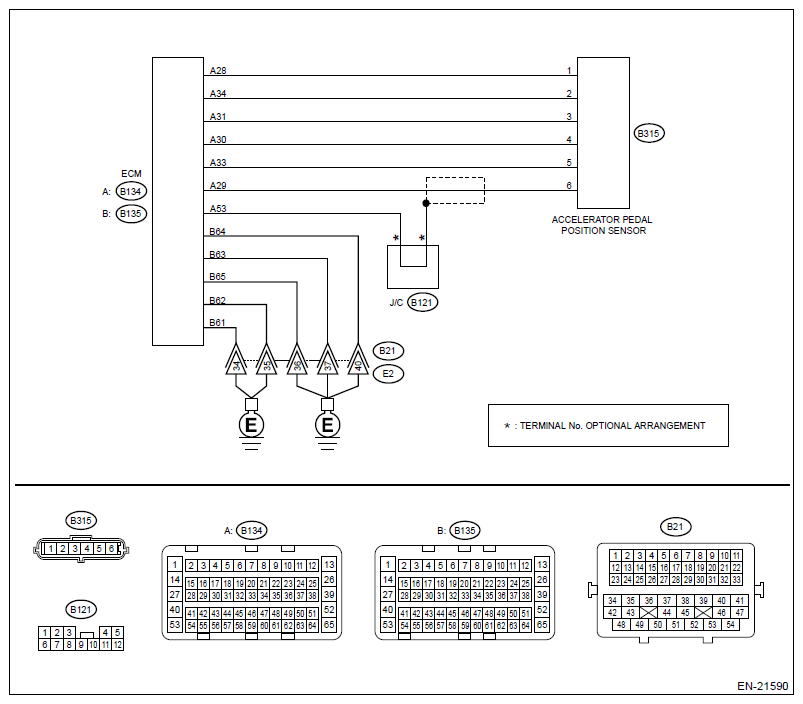

Fig 1: Engine Electrical System Wiring Diagram (Pedal Position Sensor Circuit Low)

G11270426

Courtesy of SUBARU OF AMERICA, INC.

CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR CONNECTOR.
1. Turn the ignition switch to OFF.
2. Disconnect the connector from the accelerator pedal position sensor.
3. Disconnect the connector from ECM.
4. Measure the resistance between ECM connector and chassis ground.
  Connector & terminal

  (B134) No. 28 - Chassis ground:

  (B134) No. 31 - Chassis ground:
Is the resistance 1 MΩ or more?
- Yes: Go to 2.
- No: Repair the short circuit to ground in harness between ECM connector and accelerator pedal position sensor connector.
CHECK SHORT CIRCUIT INSIDE THE ECM.
1. Connect the connector to ECM.
2. Measure the resistance between accelerator pedal position sensor connector and chassis ground.
  Connector & terminal

  (B315) No. 3 - Chassis ground:
Is the resistance 1 MΩ or more?
- Yes: Replace the accelerator pedal. Ref. to SPEED CONTROL SYSTEMS(H4DO)>Accelerator Pedal .
- No: Repair the short circuit to ground in harness between ECM connector and accelerator pedal position sensor connector. Replace the ECM if defective. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Engine Control Module (ECM) .
