Diagnosis 2

WARNING: This page is about a different variant/trim than selected.

JUDGMENT VALUE SPECIFICATION

Malfunction Criteria	Threshold Value
Difference between target opening angle and actual opening angle	Within NG range of Details of judgment value

Time needed for diagnosis:

Details of judgment value

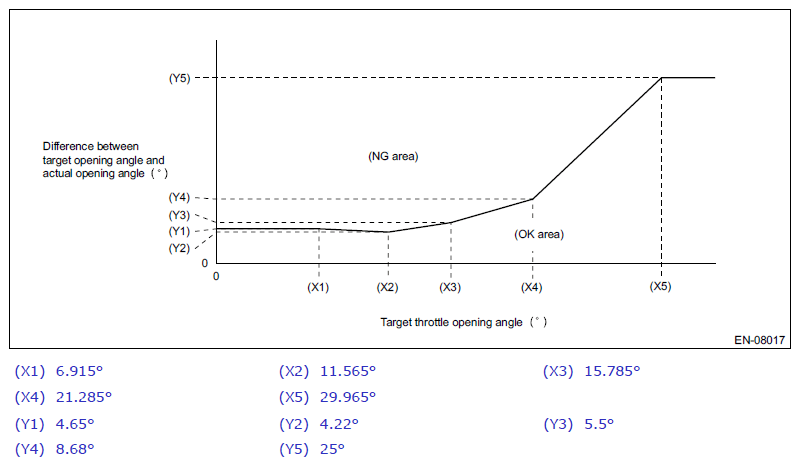

Fig 1: Target Throttle Opening Angle Characteristics

Courtesy of SUBARU OF AMERICA, INC.

Details of Judgment time

Fig 2: Throttle Position Sensor Opening Angle And Judgment Line Graph

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Judgment time when actual opening angle < target opening angle is always 1000 milliseconds.

Malfunction indicator light illumination: Illuminates as soon as a malfunction occurs.
