DTC P2103 Throttle Actuator "A" Control Motor Circuit High: Notes
WARNING: This page is about a different variant/trim than selected.
DTC detecting condition:
Immediately at fault recognition
CAUTION:
- After servicing or replacing faulty parts, perform Clear Memory Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Clear Memory Mode . and Inspection Mode Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Inspection Mode .
- Use the check board when measuring the ECM terminal voltage and resistance.

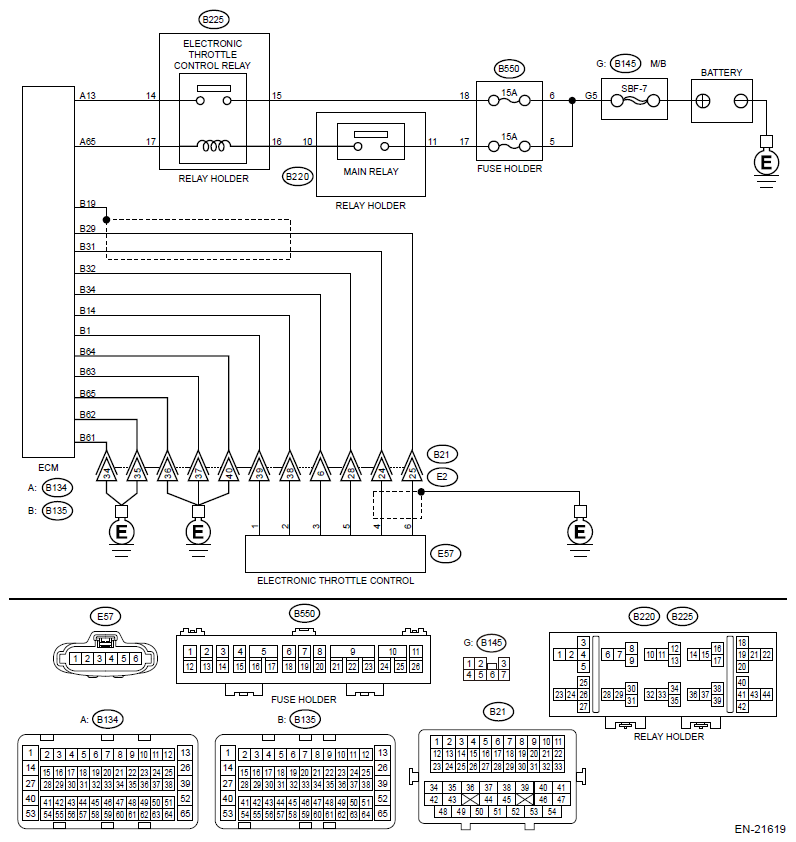

Wiring diagram:
Engine Electrical System Ref. to WIRING SYSTEM>Engine Electrical System>WIRING DIAGRAM .
- CHECK ELECTRONIC THROTTLE CONTROL RELAY.
- Turn the ignition switch to OFF.
- Remove the electronic throttle control relay.
- Measure the resistance between electronic throttle control relay terminals.
Terminals
No. 14 -No. 15:
Is the resistance 1 MΩ or more?
- Yes: Go to 2.
- No: Replace the electronic throttle control relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Electronic Throttle Control Relay .
- CHECK SHORT CIRCUIT OF ELECTRONIC THROTTLE CONTROL RELAY POWER SUPPLY.
- Turn the ignition switch to ON.
- Measure the voltage between electronic throttle control relay connector and chassis ground.
Connector & terminal
(B225) No. 14 (+) - Chassis ground (-):
Is the voltage 10 V or more?
- Yes: Repair the short circuit to power in the harness between ECM connector and electronic throttle control relay connector.
- No: Go to 3.
- CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY CONNECTOR.
- Turn the ignition switch to OFF.
- Disconnect the connector from ECM.
- Measure the resistance between ECM connector and chassis ground.
Connector & terminal
(B134) No. 65 - Chassis ground:
Is the resistance 1 MΩ or more?
- Yes: Repair the poor contact of ECM connector.
- No: Repair the short circuit to ground in harness between ECM connector and electronic throttle control relay connector.
