LH Side

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    Fig 1: Removing Ignition Coil Connector (LH)
    G10318929Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the ignition coil.

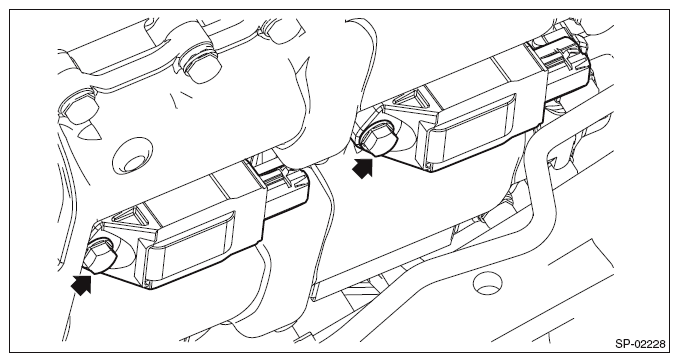

    Fig 2: Locating Ignition Coil Bolts (LH)
    G10263092Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plug with a spark plug socket.
