Back-Up Light And Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Remove the clip (A) from the air intake boot.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
Loosen the clamp (C) which connects the air intake boot and throttle body.

Fig 1: Identifying Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Fig 2: Identifying Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector back-up light switch & neutral position switch.

Fig 3: Identifying Back-Up Light Switch & Neutral Position Switch Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness connector from bracket.
Lift up the vehicle.
Remove the harness from each clip.
Remove the back-up light switch & neutral position switch with the harness.

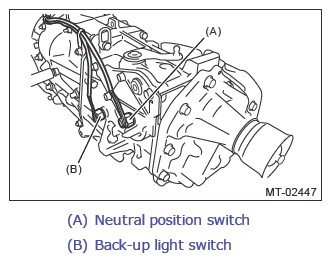

Fig 4: Identifying Neutral Position Switch And Backup Light Switch

Courtesy of SUBARU OF AMERICA, INC.
