Main Shaft Assembly

WARNING: This page is about a different variant/trim than selected.

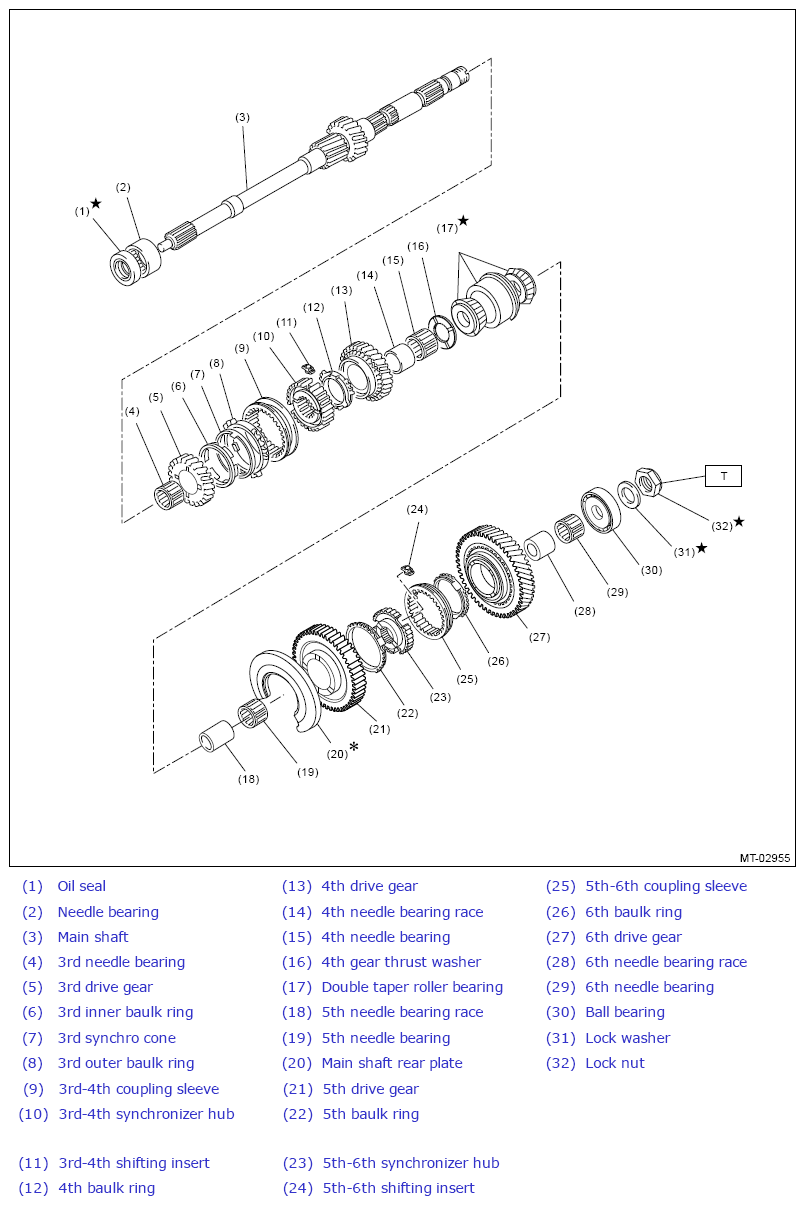

Fig 1: Exploded View Of Main Shaft Assembly With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 160 (16.3, 118.0)
