Drive Pinion Shaft Assembly

WARNING: This page is about a different variant/trim than selected.

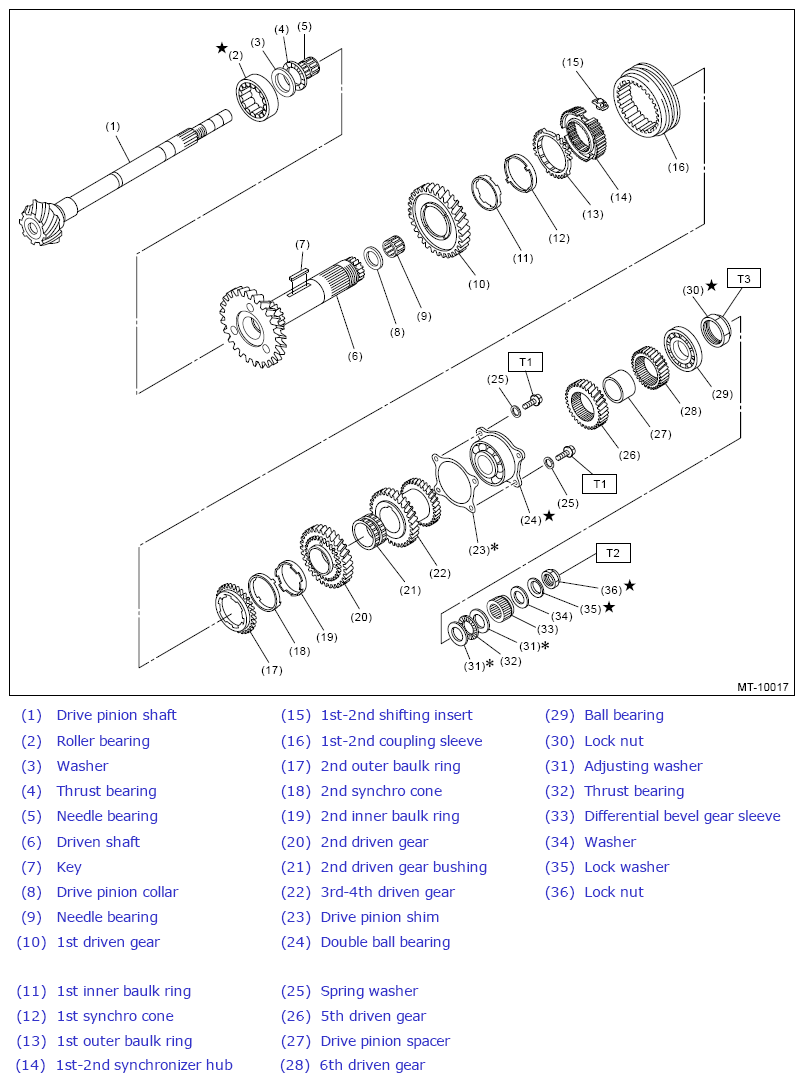

Fig 1: Exploded View Of Drive Pinion Shaft Assembly With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 126 (12.8, 92.9)

T3: 440 (44.9, 324.5)
