Front Exhaust Pipe And Center Exhaust Pipe

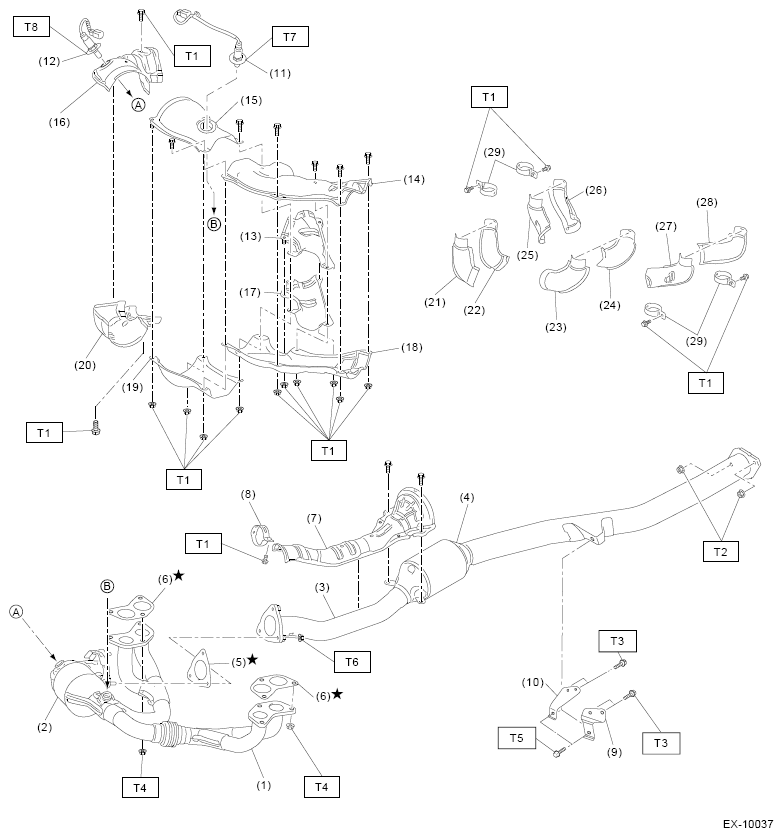

Fig 1: Identifying Front And Center Exhaust Pipe Components With Torque Specifications (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Front And Center Exhaust Pipe Components With Torque Specifications (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 18 (1.8, 13.3)

T3: 23 (2.3, 17.0)

T4: 30 (3.1, 22.1)

T5: 35 (3.6, 25.8)

T6: 42.5 (4.3, 31.3)

T7:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Front Oxygen (A/F) Sensor>INSTALLATION .

T8:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Rear Oxygen Sensor>INSTALLATION .
