Front Exhaust Pipe: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Front Oxygen (A/F) Sensor>REMOVAL . Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Rear Oxygen Sensor>REMOVAL .
  2. Remove the center exhaust pipe from the front exhaust pipe.

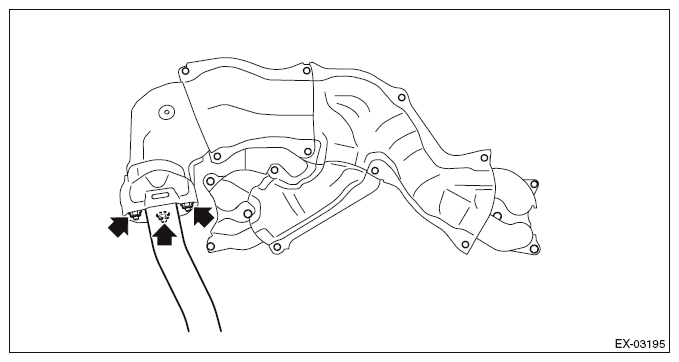

    Fig 1: Locating Front And Center Exhaust Pipe Bolts
    G10262937Courtesy of SUBARU OF AMERICA, INC.
  3. Remove each cover from the front exhaust pipe.

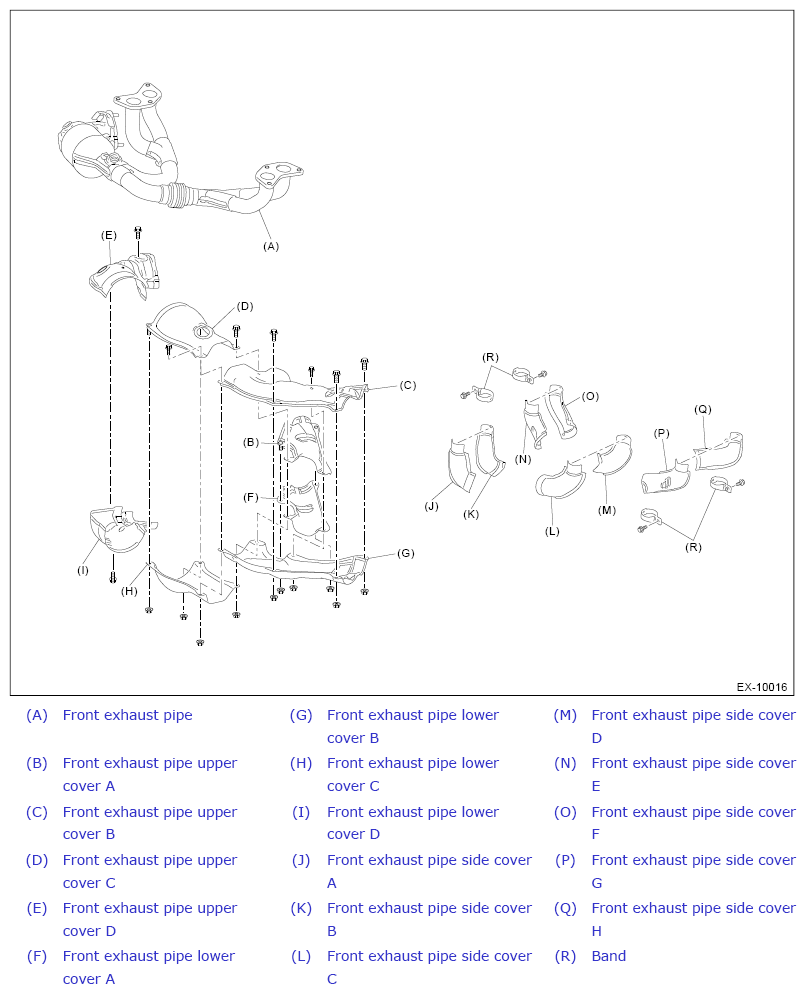

Fig 2: Identifying Front Exhaust Pipe Covers
G11264130Courtesy of SUBARU OF AMERICA, INC.
