Release Bearing and Lever: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle.

    Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT)>Manual Transmission Assembly>REMOVAL .

  2. Remove the two clips from the release lever and remove the release bearing.
    CAUTION: Be careful not to deform the clips.
  3. Remove the dust cover.

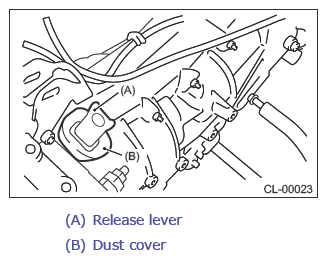

    Fig 1: Remove/Install Components Transmission Assembly Release Lever And Dust Cover
    G11268062Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the attachment point of lever spring by inserting a screwdriver through the clutch housing release lever hole. Then remove the release lever.

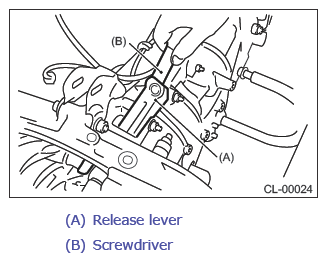

Fig 2: Removing Lever Spring Attachment Point Using Screwdriver
G11268063Courtesy of SUBARU OF AMERICA, INC.
