Release Bearing and Lever: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Apply the specified grease to lubricate to the following points before installation.
- Contact surface of lever and pivot
- Contact surface of lever and bearing
- Transmission main shaft spline
- Contact surface of release bearing and transmission case
Grease
NICHIMOLY N-130 or equivalent
- While pushing the release lever to the pivot and twisting it to both sides, fit the lever spring onto the raised portion of the pivot.NOTE: Observing from the main case hole, check that the lever spring is installed securely.
- Install the release bearing and fasten it with two clips.

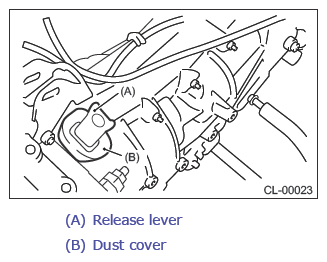

- Install the dust cover.
- Operate the release lever and check if the release bearing moves smoothly.
- Apply grease to the contact point of the release lever and operating cylinder.
Grease
NICHIMOLY N-130 or equivalent
- Install the transmission assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT)>Manual Transmission Assembly>INSTALLATION .
