Master Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Install the master cylinder to the body, and connect the clutch pipe and the tank hose.
Tightening torque:

T1: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

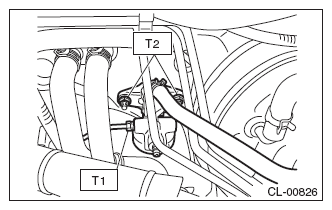

Fig 1: Locating Master Cylinder Clutch Pipe And Tank Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the push rod of the master cylinder, and install the clevis pin and snap pin.
CAUTION: Always use a new clevis pin.

NOTE: Apply grease to the clevis pin.

Fig 2: Identifying Master Cylinder Clevis Pin, Snap Pin And Push Rod
Courtesy of SUBARU OF AMERICA, INC.
Install the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>INSTALLATION .
Fill the recommended brake fluid. Ref. to CLUTCH SYSTEM>Clutch Fluid .
After bleeding air from the clutch system, ensure that the clutch operates properly. Ref. to CLUTCH SYSTEM>Clutch Fluid Air Bleeding .
Install the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>INSTALLATION .
Install the air intake boot assembly. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>INSTALLATION .
Connect the battery ground terminal.
