Clutch Switch: Adjustment

WARNING: This page is about a different variant/trim than selected.

Loosen the lock nut of the clutch start switch.

Fig 1: Clutch Start Switch And Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector of the clutch start switch.
Remove the snap pin and clevis pin connecting the clutch pedal and operating rod.

Fig 2: Clutch Switch Clevis Pin, Snap Pin, Push Rod And Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
Adjust the clutch start switch so that the switch turns on when the clearance between clutch pedal stopper and clutch pedal is within the specification described below, and then tighten the lock nut.
Clearance A:

6.3-8.6 mm (0.25-0.34 in)

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

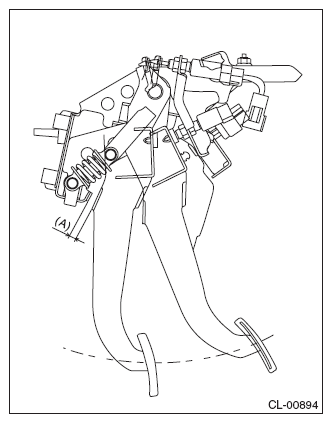

Fig 3: Clutch Pedal Stopper And Clutch Pedal Clearance
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Using a plate of the same thickness for the clearance facilitates the adjustment operation.
- Using the Subaru Select Monitor or a tester, check the position where the switch turns on.
  Check the following figure for the terminal layout of the harness connector.

  Fig 4: Checking Clutch Start Switch Terminals Resistance
  Courtesy of SUBARU OF AMERICA, INC.
- When performing adjustment by the clearance between clutch start switch and clutch pedal plate, perform installation according to the following gap.
  Clearance B:

  8.6-9.0 mm (0.34-0.35 in)

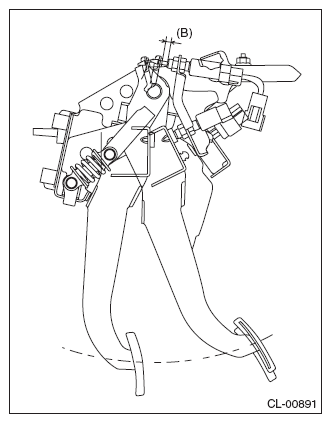

  Fig 5: Clutch Start Switch And Clutch Pedal Plate Clearance Dimensions
  Courtesy of SUBARU OF AMERICA, INC.
Connect the clutch start switch connector.
