Clutch Pipe and Hose: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the clip (A) from the air intake boot.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
Loosen the clamp (C) which connects the air intake boot and throttle body.

Fig 1: Locating Air Intake Boot Clip, Clamp And Throttle Body Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Fig 2: Removing Air Intake Boot From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Drain the brake fluid. Ref. to CLUTCH SYSTEM>Clutch Fluid .
Disconnect the clutch pipe from the clutch hose and master cylinder.
Remove the clamp, and then remove the clutch hose.

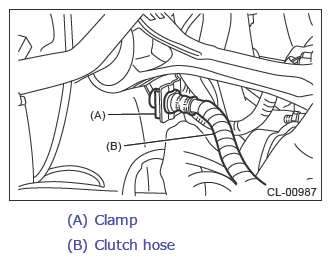

Fig 3: Clutch Hose And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the hose from operating cylinder.
Remove the harness clip.

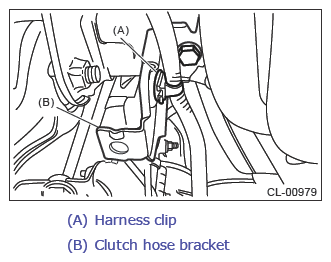

Fig 4: Harness Clip And Clutch Hose Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the clutch hose bracket.
