Clutch Pedal: Adjustment

WARNING: This page is about a different variant/trim than selected.

Turn the lock nut until the full stroke of clutch pedal becomes within the specification.
CAUTION: When adjusting the full stroke of clutch pedal, do not turn the clutch switch.

NOTE: If the lock nut cannot adjust the full stroke of clutch pedal to the specified value, adjust it by turning the master cylinder push rod.

Clutch pedal full stroke A:

130 - 135 mm (5.12 - 5.31 in)

Tightening torque (clutch switch lock nut):

T: 8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 1: Identifying Clutch Full Stroke Dimension And Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
If the full stroke is not within the specified value, loosen the clutch switch lock nut to adjust.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Loosen the push rod lock nuts.

Fig 2: Identifying Push Rod Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
Make sure that the clutch pedal contacts the clutch pedal bracket stopper when the clutch pedal is at the maximum stroke position.

Fig 3: Identifying Clutch Pedal Contact Directions
Courtesy of SUBARU OF AMERICA, INC.
Make sure that the clutch pedal contacts the clutch switch side when the pedal is released.
Turn the push rod to shorten until a clearance is gained on the clutch switch side.

Fig 4: Identifying Clutch Pedal Clutch Switch And Stopper
Courtesy of SUBARU OF AMERICA, INC.
Turn the push rod to lengthen until clutch pedal contacts the clutch switch.
Turn further in the direction that will shorten the push rod by 270°.

Fig 5: Turning Clutch Pedal
Courtesy of SUBARU OF AMERICA, INC.
Check that the clevis pin moves smoothly by moving it in the left and right directions.
Tighten the push rod lock nut.
Tightening torque (push rod lock nut):

T: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 6: Clutch Pedal Push Rod Lock Nut With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Depress and release the clutch pedal two or three times to ensure that the clutch pedal and release lever operate smoothly. If the clutch pedal and release lever do not operate smoothly, bleed air from the clutch hydraulic system. Ref. to CLUTCH SYSTEM>Clutch Fluid Air Bleeding .
Measure the clutch pedal full stroke length to ensure that it is within specifications. If it is not within specifications, repeat adjustment procedures from the beginning.
Clutch pedal full stroke:

130 - 135 mm (5.12 - 5.31 in)
Push the release lever until the operating cylinder push rod retracts. Check that the brake fluid level in the reservoir tank increases.

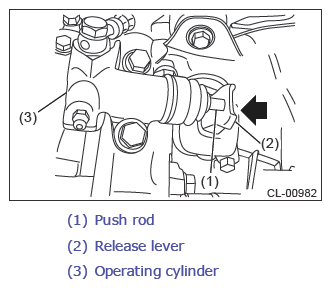

Fig 7: Locating Clutch Pedal Operating Cylinder, Release Lever And Push Rod
Courtesy of SUBARU OF AMERICA, INC.
If the brake fluid level increases, hydraulic clutch play is correct.
If the brake fluid level does not increase or push rod does not retract, readjust the clutch pedal.
Check the brake fluid level using the scale on the reservoir tank. Ref. to CLUTCH SYSTEM>Clutch Fluid>INSPECTION .
