Clutch Disc and Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Insert the ST into the clutch disc and insert the ST end into the pilot bearing.
NOTE: When installing the clutch disc, be careful to attach in the correct direction.

ST 499747100 CLUTCH DISC GUIDE

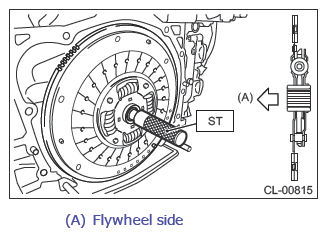

Fig 1: Inserting Special Tool Into Clutch Disc
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch cover and tighten the bolts to specified torque.
NOTE:
- When installing a clutch cover, position the clutch cover so that the spacing between the unbalance marks (paint mark) on the flywheel and clutch cover is 120° or more apart. (The unbalance mark indicates the direction of residual unbalance.)
- Temporarily tighten the bolts by hand. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

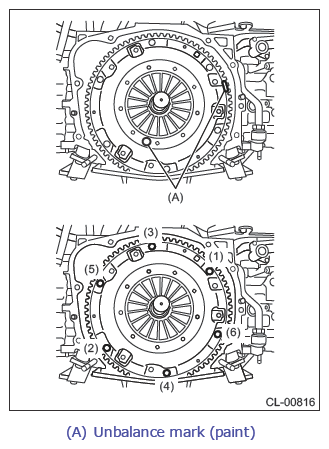

Fig 2: Locating Clutch Cover Unbalance Paint Mark And Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.
ST 499747100 CLUTCH DISC GUIDE
Install the transmission assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT)>Manual Transmission Assembly>INSTALLATION .
