Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the clips from air cleaner case (front).

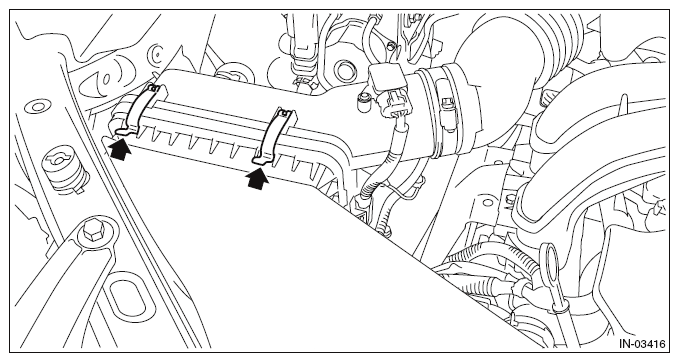

Fig 1: Locating Clips From Air Cleaner Case (Front)
Courtesy of SUBARU OF AMERICA, INC.
Open the air cleaner case, and remove the air cleaner element.

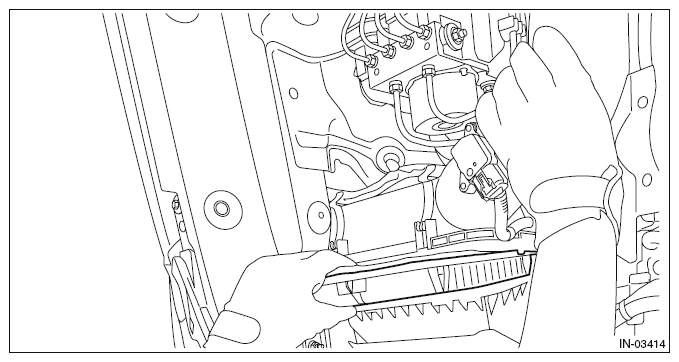

Fig 2: Removing Air Cleaner Element

Courtesy of SUBARU OF AMERICA, INC.
