Air Cleaner Case: Installation

WARNING: This page is about a different variant/trim than selected.

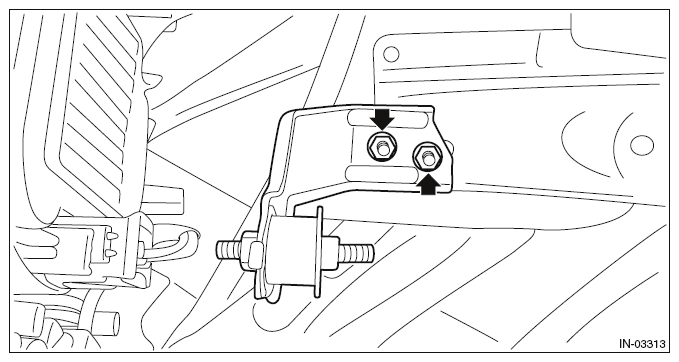

Install the air cleaner case bracket to the vehicle.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Locating Air Cleaner Case Bracket Nuts
Courtesy of SUBARU OF AMERICA, INC.

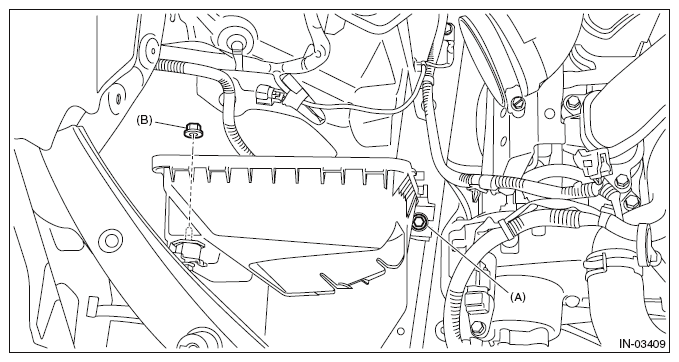

Install the bolt (A) and nut (B) which secure the air cleaner case (front) to the vehicle and to the air cleaner case bracket.
Tightening torque:

Bolt (A)

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut (B)

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 2: Installing Air Cleaner Case (Front) Bolt And Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case (rear) and air cleaner element.
NOTE:
- Check that there is no dirt or dust within the air cleaner case. If any dirt or dust is found, clean it.
- Install the air cleaner element as shown in the figure.

  Fig 3: Identifying Air Cleaner Element Related Components
  Courtesy of SUBARU OF AMERICA, INC.
- When installing the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the hole on the air cleaner case (front) to install.
Fig 4: Aligning Protrusion Of Air Cleaner Case (Rear) To Hole On Air Cleaner Case (Front)
Courtesy of SUBARU OF AMERICA, INC.

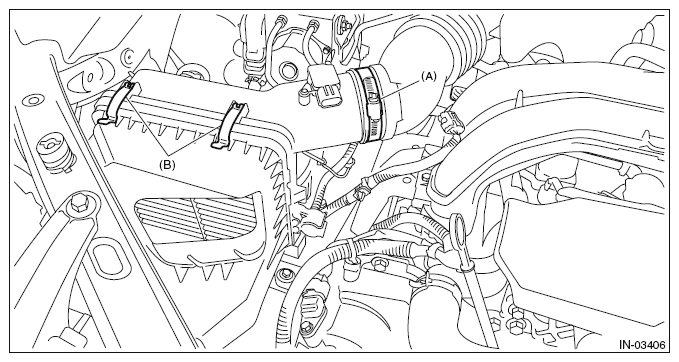

Install the clips (B) to the air cleaner case (front), then tighten the clamp (A) that secures the air cleaner case (rear) and air intake boot.
Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 5: Installing Clips To Air Cleaner Case (Front)
Courtesy of SUBARU OF AMERICA, INC.

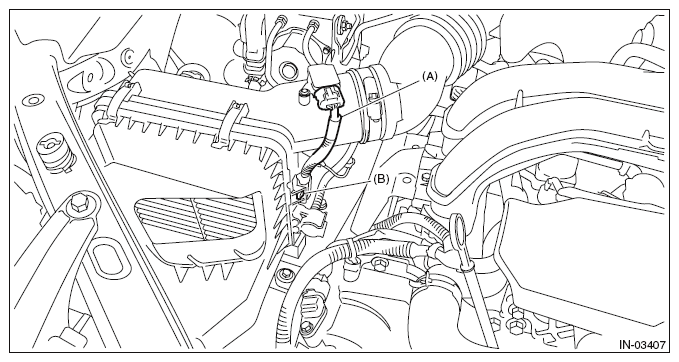

Connect the connector (A) to the mass air flow and intake air temperature sensor and secure the harness with clip (B).

Fig 6: Connecting Connector To Mass Air Flow And Intake Air Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct (rear). Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to NOTE > NOTE >>BATTERY .
